6023-056
RoHS
/
Package /
Category Transformers / Power Transformers
Description
XFRMR LAMINATED 2.4VA THRU HOLE
PDF
/
Inventory: 4447
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Width 28.58mm
Length 34.93mm
Height Seated (Max) 30.15mm
Technical
VA Rating 2.4 VA
Number of Secondary Winding 2
Output Voltage 2 28V
Voltage - Secondary (Full Load) Parallel 28V Series 56V
Center Tap No
Primary Winding(s) Dual
Voltage - Primary 115V 230V
Output Voltage 1 28V
Power - Max 2.4VA
Current - Output (Max) Parallel 90mA Series 45mA
Max Output Current 45mA
Voltage - Isolation 2500Vrms
Physical Dimension L34.93XB28.58XH30.16 (mm)
Operating Temperature (Max) 130°C
Approval Agency UL; CSA
Termination Style PC Pin
Max Power Dissipation 2.4W
Power Rating 2.4W
Additional Feature SINGLE 230V
Terminal Finish Tin/Lead (Sn/Pb)
Type Laminated Core
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code no
JESD-609 Code e0
Size / Dimension 34.93mm Lx28.58mm W
Series 6023
Published 2010
Packaging Bulk
Physical
Weight 0.25lb 113.4g
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 13 Weeks

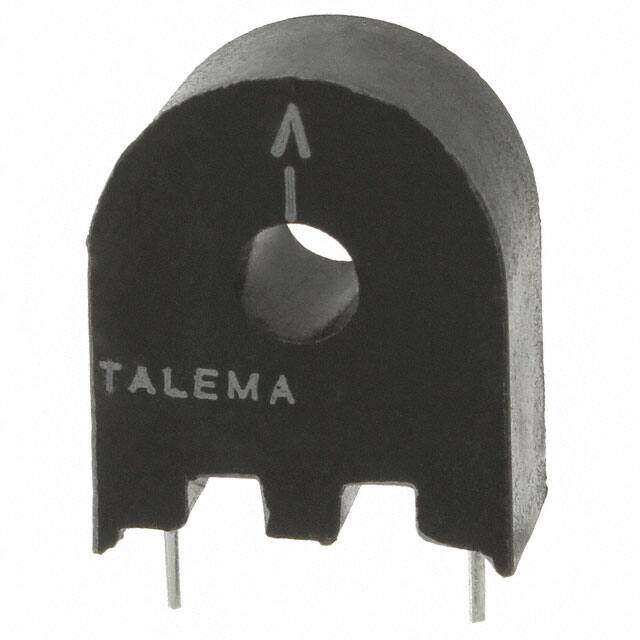

Alternative Model
