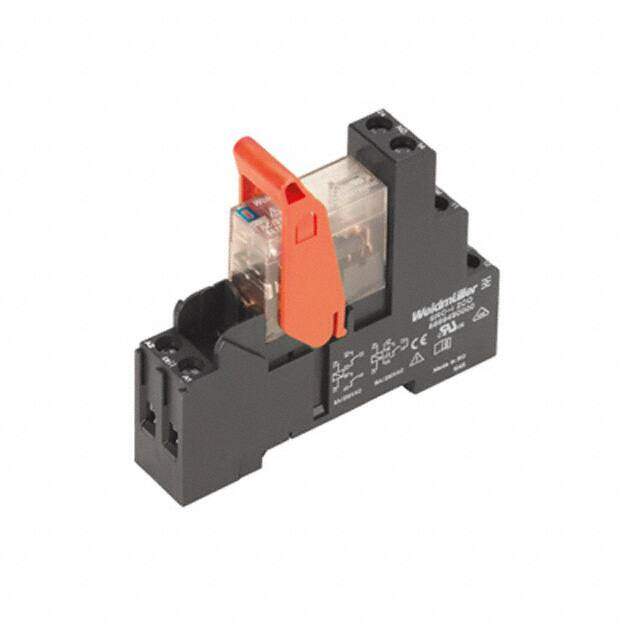

8871000000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Relays / Power Relays, Over 2 Amps
Description
RELAY GEN PURPOSE SPDT 16A 24V
PDF
/
Inventory: 1512
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Silver Nickel (AgNi)
Mount DIN Rail
Mounting Type DIN Rail
Technical
Operating Temperature -40°C~70°C
Packaging Bulk
Published 2011
Series RCI KIT
Feature Lighted Indicator, Socket Included
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Power
Voltage - Rated 240V
Power Rating 420mW
Depth 70mm
Current Rating 16.7mA
Termination Style Screw Terminal
Approval Agency CE, EN
Number of Contacts 1
Throw Configuration SPDT
Contact Form SPDT (1 Form C)
Relay Type General Purpose
Coil Resistance 1.44kOhm
Operate Time 7ms
Coil Voltage 24VDC
Coil Type Non Latching
Switching Voltage 250VAC -Max
Release Time 3ms
Must Operate Voltage 16.8VDC
Coil Power 400mW
Must Release Voltage 2.4VDC
Contact Voltage(AC)-Max 250V
Contact/Output Supply Type AC
Relay Action MOMENTARY
Coil Voltage (DC) 24V
Coil/Input Supply Type DC
Switching Current 16A
Dimensions
Height 77mm
Width 15.5mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
