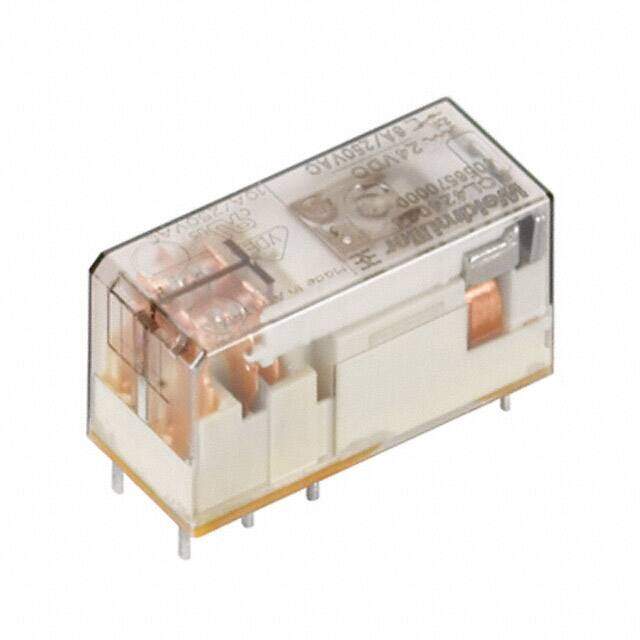

8693500000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Relays / Power Relays, Over 2 Amps
Description
RELAY GEN PURPOSE SPDT 16A 24V
PDF
/
Inventory: 5601
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 12.7mm
Height 29mm
Technical
Coil Current(AC)-Max 0.032A
Coil Voltage (AC) 24V
Seal Rating Sealed - Flux Protection
Coil/Input Supply Type AC
Relay Action MOMENTARY
Contact/Output Supply Type AC
Must Release Voltage 3.6VAC
Coil Power 750mW
Contact Rating (Current) 16A
Must Operate Voltage 18VAC
Release Time 3ms
Switching Voltage 250VAC -Max
Coil Type Non Latching
Coil Voltage 24VAC
Operate Time 7ms
Coil Resistance 1.44kOhm
Relay Type General Purpose
Contact Form SPDT (1 Form C)
Throw Configuration SPDT
Max Current Rating 16A
Max Voltage Rating (AC) 250V
Sealing FLUX FREE SEALED
Number of Contacts 1
Approval Agency CSA, VDE, cURus
Termination Style PC Pin
Reference Standard UL; VDE
Current Rating 31.6mA
Depth 15.7mm
Power Rating 750mW
Voltage - Rated 24V
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series RCL
Published 2012
Packaging Bulk
Operating Temperature -40°C~70°C
Physical
Weight 14g
Mounting Type Through Hole
Mount Through Hole
Contact Material Silver Nickel (AgNi)
Supply Chain
Factory Lead Time 8 Weeks
