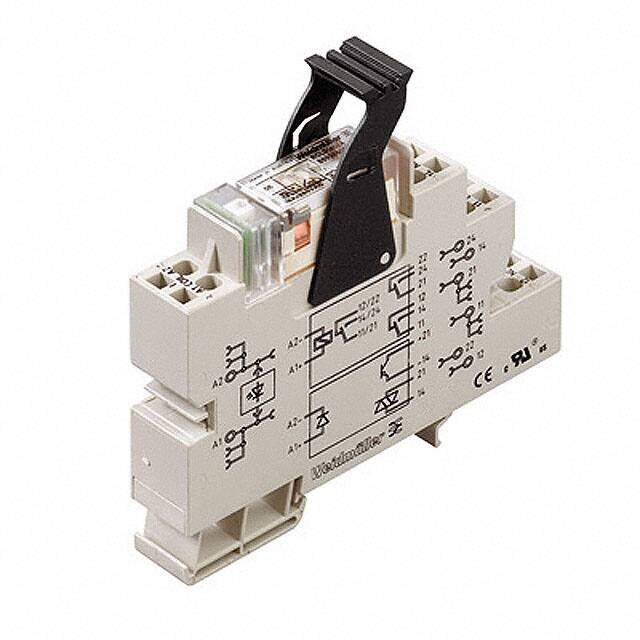

8536571001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Relays / Power Relays, Over 2 Amps
Description
RELAY GEN PURPOSE SPDT 10A 12V
PDF
/
Inventory: 6397
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Silver
Mount DIN Rail
Mounting Type DIN Rail
Technical
Operating Temperature -40°C~50°C
Packaging Bulk
Published 2008
Series PRZ
Feature Lighted Indicator, Socket Included
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Voltage - Rated 300V
Power Rating 400mW
Depth 87.5mm
Current Rating 33mA
Reference Standard CE; UL
Termination Style Spring Terminal
Approval Agency CE, EN, cURus
Number of Contacts 1
Sealing IP20
Throw Configuration SPDT
Contact Form SPDT (1 Form C)
Relay Type General Purpose
Coil Resistance 360Ohm
Operate Time 8 ms
Coil Voltage 12VDC
Coil Type Non Latching
Switching Voltage 250VAC -Max
Coil Current 33.3mA
Release Time 6.9 ms
Must Operate Voltage 8.4VDC
Contact Rating (Current) 10A
Coil Power 400mW
Must Release Voltage 1.2VDC
Contact Voltage(AC)-Max 250V
Contact/Output Supply Type AC
Relay Action MOMENTARY
Coil Voltage (DC) 12V
Coil/Input Supply Type DC
Dimensions
Height 92mm
Length 87.5mm
Width 15.3mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
