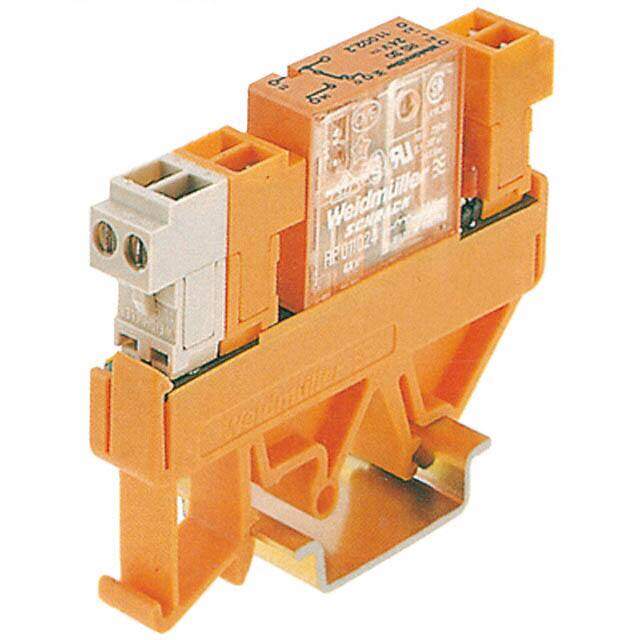

1100410000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Relays / Power Relays, Over 2 Amps
Description
RELAY GEN PURPOSE SPDT 6A 48V
PDF
/
Inventory: 1397
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 25mm
Length 56mm
Height 74mm
Technical
Coil Current(DC)-Max 8A
Coil/Input Supply Type DC
Coil Voltage (DC) 48V
Relay Action MOMENTARY
Contact/Output Supply Type AC
Contact Voltage(AC)-Max 250V
Coil Power 450mW
Contact Rating (Current) 6A
Release Time 11ms
Switching Voltage 250VAC -Max
Coil Type Non Latching
Coil Voltage 48VDC
Operate Time 12ms
Coil Resistance 6Ohm
Relay Type General Purpose
Contact Form SPDT (1 Form C)
Throw Configuration SPDT
Electrical Life 500000 Cycle(s)
Sealing IP20
Physical Dimension 74mm x 25mm x 56mm
Number of Contacts 1
Approval Agency CE, CSA, EN
Termination Style Screw Terminal
Reference Standard CE; CSA
Current Rating 8mA
Depth 56mm
Power Rating 450mW
Voltage - Rated 48V
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Diode, Socket Included
Series RS
Published 2008
Packaging Bulk
Operating Temperature -25°C~40°C
Physical
Mounting Type DIN Rail
Mount DIN Rail
Contact Material Silver Nickel (AgNi), Gold (Au)
Supply Chain
Factory Lead Time 7 Weeks
