5604028
RoHS
RoHS compliant
RoHS compliantPackage /
Category Relays / Power Relays, Over 2 Amps
Description

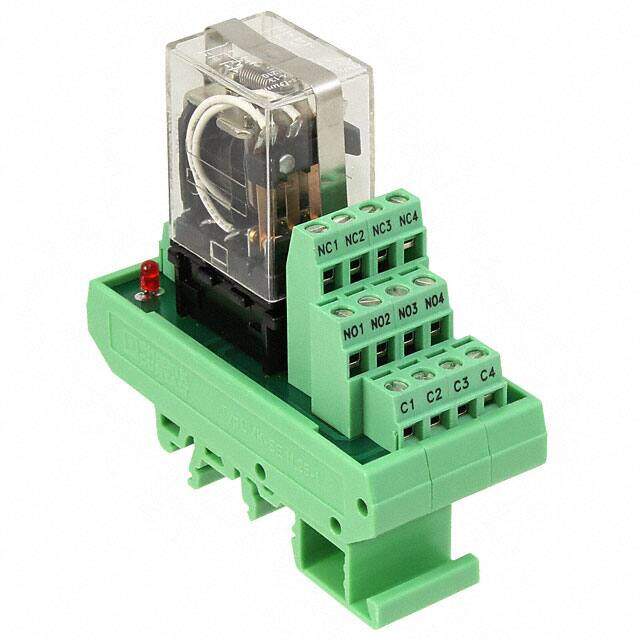

Electromechanical Relay 24VDC 650Ohm 5A 4PDT (33.7x77x71.4)mm DIN Rail Industrial Relay
PDF
/
Inventory: 1076
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Silver Cadmium Oxide (AgCdO), Gold (Au)
Mount DIN Rail
Mounting Type DIN Rail
Number of Pins 14
Technical
Operating Temperature -40°C~70°C
Packaging Bulk
Published 2003
Series UMK
Feature Diode, Socket Included
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Depth 77mm
Termination Style Screw Terminal
Voltage - Rated AC 240V
Max Voltage Rating (AC) 240V
Max Current Rating 5A
Throw Configuration 4PDT
Max Voltage Rating (DC) 30V
Contact Form 4PDT (4 Form C)
Relay Type General Purpose
Coil Resistance 650Ohm
Coil Voltage 24VDC
Coil Type Non Latching
Switching Voltage 240VAC 30VDC -Max
Coil Current 36.92mA
Must Operate Voltage 18VDC
Must Release Voltage 2.4VDC
Coil Voltage (DC) 24V
Dimensions
Length 33.7mm
Compliance
RoHS Status RoHS Compliant
