2987943
RoHS
RoHS compliant
RoHS compliantPackage /
Category Relays / Power Relays, Over 2 Amps
Description

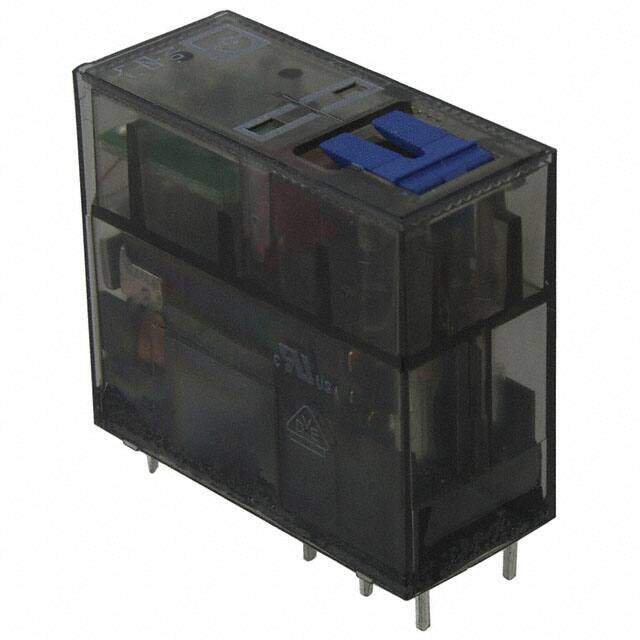

Industrial Relays REL-MR- 24DC/ 21-21/MS
PDF
/
Buying Options
Total Price: USD $11.35
Unit Price: USD $11.352
≥1 USD $11.352
Inventory: 188
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Silver Nickel (AgNi)
Mount Through Hole
Mounting Type Through Hole
Technical
Operating Temperature -40°C~70°C
Packaging Bulk
Published 2014
Series REL-MR
Feature Diode, Lighted Indicator, Mechanical Indicator, Test Button
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Termination Style PC Pin
Throw Configuration DPDT
Contact Form DPDT (2 Form C)
Relay Type General Purpose
Operate Time 9ms
Coil Voltage 24VDC
Coil Type Non Latching
Switching Voltage 250VAC 250VDC -Max
Coil Current 18mA
Release Time 6ms
Contact Rating (Current) 8A
Coil Voltage (DC) 24V
Dimensions
Height 29mm
Width 12.7mm
Compliance
RoHS Status RoHS Compliant
