2966249
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Relays / Power Relays, Over 2 Amps
Description

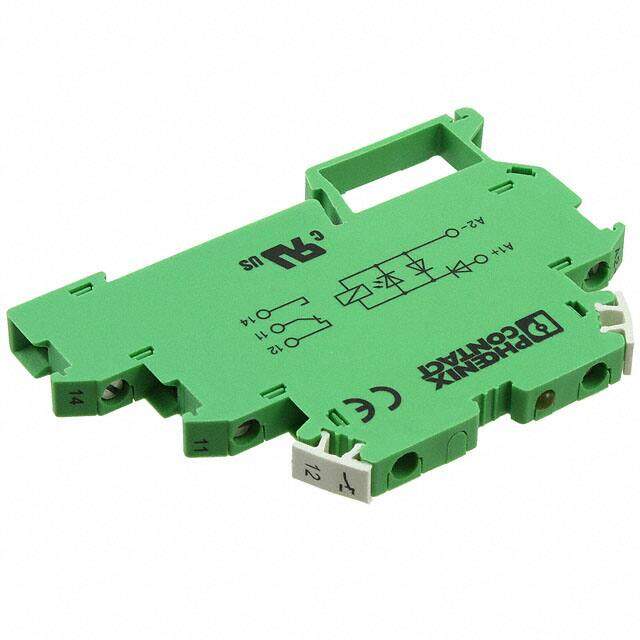

Industrial Relays PLC-RSC-120UC/1/SEN
PDF
/
Buying Options
Total Price: USD $31.84
Unit Price: USD $31.8384
≥1 USD $31.8384
≥10 USD $29.7528
≥100 USD $27.372576
≥500 USD $25.289968
≥1000 USD $24.099926
Inventory: 15
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Silver Tin Oxide (AgSnO)
Mount Chassis, DIN Rail
Mounting Type DIN Rail
Package / Case Module
Weight 34.099997g
Technical
Operating Temperature -25°C~55°C
Packaging Bulk
Published 2010
Series PLC-RSC
Feature Lighted Indicator, Socket Included
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Max Operating Temperature 55°C
Min Operating Temperature -25°C
Voltage - Rated DC 250V
Depth 94mm
Current Rating 6A
Termination Style Screw Terminal
Voltage - Rated AC 250V
Approval Agency UL
Throw Configuration SPST
Turn On Delay Time 6 ms
Contact Form SPST-NC (1 Form B)
Max Input Voltage 120V
Relay Type General Purpose
Turn-Off Delay Time 15 ms
Operate Time 6ms
Coil Voltage 120VAC/DC
Coil Type Non Latching
Switching Voltage 250VAC 250VDC -Max
Coil Current 3.5mA
Release Time 15ms
Contact Rating (Current) 6A
Input Current 3.5mA
Coil Voltage (AC) 120V
Dimensions
Height 80mm
Length 6.2mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
