2942111
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Relays / Power Relays, Over 2 Amps
Description

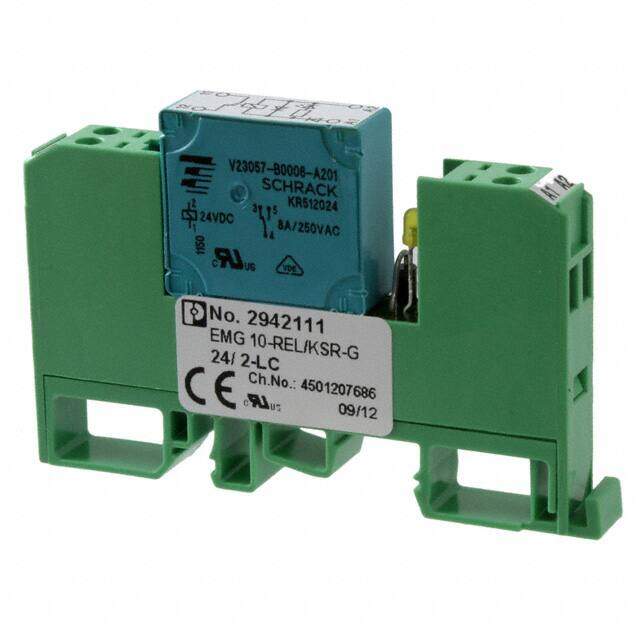

Industrial Relays EMG 10-REL/KSR-G 24/2-LC
PDF
/
Buying Options
Total Price: USD $59.43
Unit Price: USD $59.4264
≥1 USD $59.4264
≥10 USD $54.67
≥100 USD $50.510416
≥500 USD $48.13336
Inventory: 61
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Silver Nickel (AgNi)
Mount DIN Rail
Mounting Type DIN Rail
Package / Case Module
Weight 34.749995g
Technical
Operating Temperature -20°C~40°C
Packaging Bulk
Published 2010
Series EMG 10-REL
Feature Socket Included
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Depth 10.6mm
Current Rating 6A
Termination Style Screw Terminal
Voltage - Rated AC 250V
Max Voltage Rating (AC) 250V
Max Current Rating 6A
Throw Configuration SPST
Max Voltage Rating (DC) 250V
Contact Form SPST-NC (1 Form B)
Relay Type General Purpose
Coil Resistance 1.143kOhm
Operate Time 7ms
Coil Voltage 24VDC
Coil Type Non Latching
Switching Voltage 250VAC 250VDC -Max
Coil Current 21mA
Release Time 11ms
Coil Voltage (DC) 24V
Dimensions
Height 75mm
Length 53.5mm
Width 10.6mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Alternative Model
