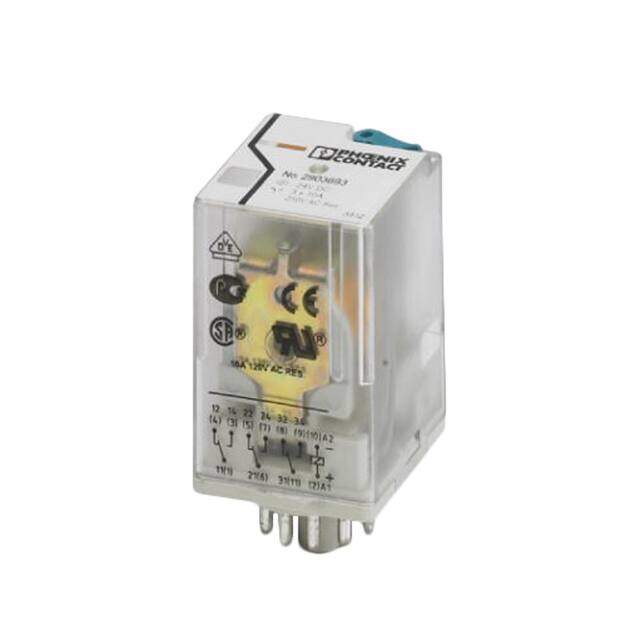

2903693 image
Favorite
2903693 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Relays / Power Relays, Over 2 Amps
Description Pwr Relay; 3PDT; Test Btn/LED/Diode/Pos. Ind.; Plrity A1/A2-; 24VDC Coil; Octal Plug
PDF
/
Buying Options
Total Price: USD $8.61
Unit Price: USD $8.6064
≥1 USD $8.6064
Inventory: 50
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Length 35mm
Height 54.5mm

Technical

Coil Power 80mW
Contact Rating (Current) 10A
Release Time 20ms
Coil Current 60mA
Switching Voltage 250VAC 250VDC -Max
Coil Type Non Latching
Coil Voltage 24VDC
Operate Time 18ms
Coil Resistance 400Ohm
Relay Type General Purpose
Contact Form 3PDT (3 Form C)
Termination Style Plug In, 8 Pin (Octal)
Depth 35mm
ECCN Code EAR99
Termination Plug
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Diode, Lighted Indicator, Mechanical Indicator, Test Button
Series REL-OR
Published 2014
Operating Temperature -40°C~70°C

Physical

Mounting Type Socketable
Mount PCB
Contact Material Silver Nickel (AgNi)

Supply Chain

Factory Lead Time 4 Weeks
