2834423
RoHS
/
Package /
Category Relays / Power Relays, Over 2 Amps
Description

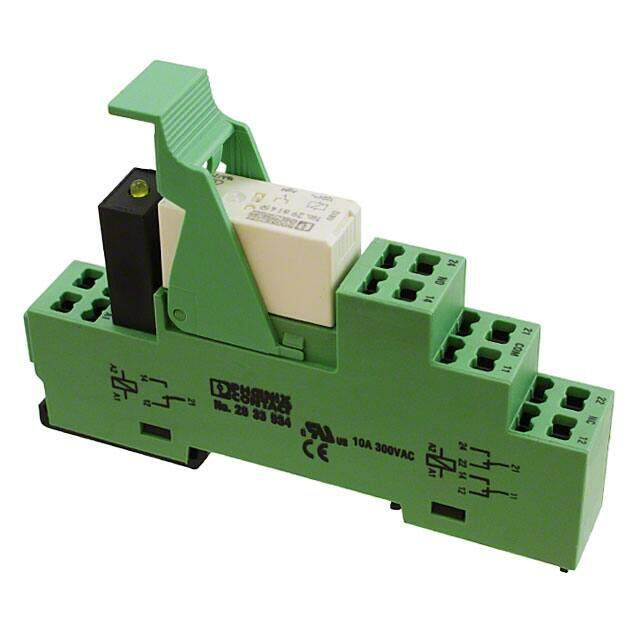

Industrial Relays PR1-RSP3LV-120AC/21 10A 120V AC SPDT SPG
PDF
/
Inventory: 1091
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Silver Nickel (AgNi)
Mount DIN Rail, Socket
Mounting Type DIN Rail
Number of Pins 5
Weight 65.88999g
Technical
Operating Temperature -25°C~60°C
Packaging Bulk
Published 2011
Series PR1
Feature Lighted Indicator, Socket Included, Varistor
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Max Operating Temperature 60°C
Min Operating Temperature -25°C
Current Rating 12A
Termination Style Spring Terminal
Max Voltage Rating (AC) 250V
Max Current Rating 10A
Throw Configuration SPDT
Max Voltage Rating (DC) 250V
Contact Form SPDT (1 Form C)
Relay Type General Purpose
Operate Time 12ms
Coil Voltage 120VAC
Coil Type Non Latching
Switching Voltage 250VAC 250VDC -Max
Coil Current 7mA
Release Time 16ms
Contact Rating (Current) 10A
Coil Voltage (AC) 120V
Dimensions
Height 72mm
Length 97mm
Width 16mm
Compliance
RoHS Status RoHS Compliant
