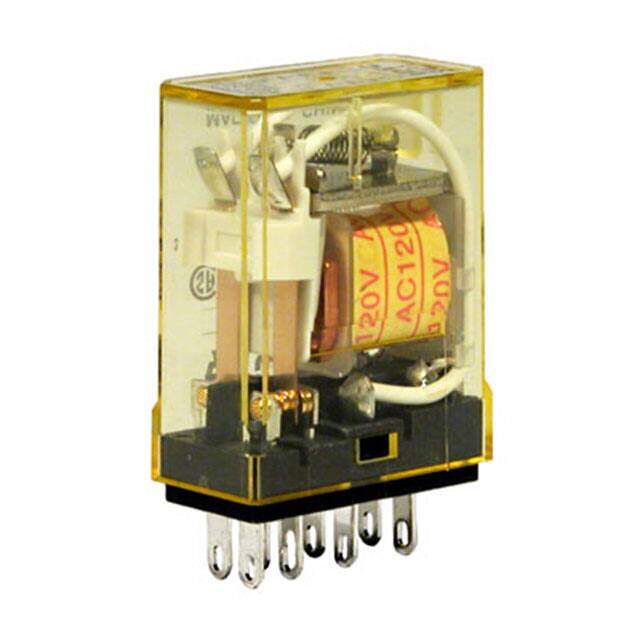

RY2S-UAC24V
RoHS
RoHS compliant
RoHS compliantPackage /
Category Relays / Power Relays, Over 2 Amps
Description
Active ROHS3Compliant DPDT (2Form C) General Purpose Power Relay 20ms -25C~55C 300Ohm 37mA
PDF
/
Buying Options
Total Price: USD $10.09
Unit Price: USD $10.088346
≥1 USD $10.088346
≥10 USD $9.517312
≥100 USD $8.978593
≥500 USD $8.470372
≥1000 USD $7.99092
Inventory: 1162
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Technical
Coil Voltage (AC) 24V
Must Release Voltage 7.2VAC
Must Operate Voltage 19.2VAC
Coil Current 37mA
Switching Voltage 240VAC 30VDC -Max
Coil Type Non Latching
Coil Voltage 24VAC
Operate Time 20ms
Coil Resistance 300Ohm
Relay Type General Purpose
Contact Form DPDT (2 Form C)
Max Voltage Rating (DC) 30V
Throw Configuration DPDT
Max Current Rating 3A
Max Voltage Rating (AC) 220V
Approval Agency CE, CSA, TUV, UL
Voltage - Rated AC 240V
Termination Style Plug In
Current Rating 3A
Termination PC Pin
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series RY
Published 2005
Packaging Bulk
Operating Temperature -25°C~55°C
Physical
Weight 23g
Number of Pins 8
Mounting Type Socketable
Mount Socket
Contact Material Silver (Ag), Gold (Au)
Supply Chain
Factory Lead Time 4 Weeks
