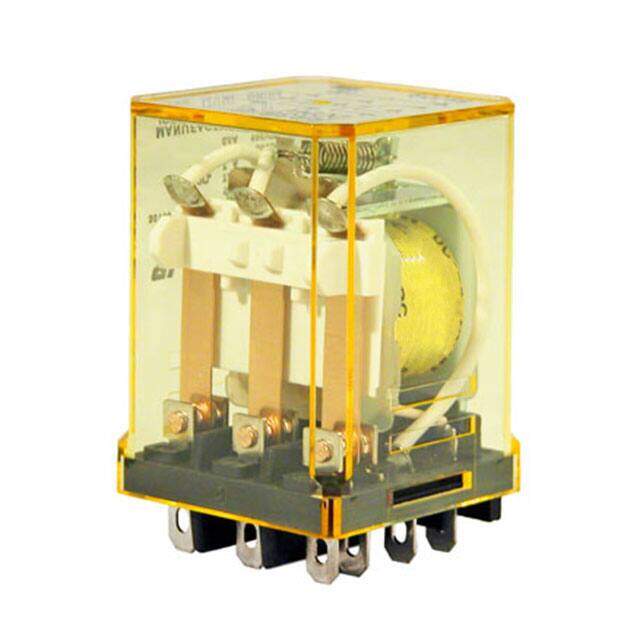

RR3B-ULDC48V
RoHS
RoHS compliant
RoHS compliantPackage /
Category Relays / Power Relays, Over 2 Amps
Description
Active ROHS3Compliant 3PDT (3Form C) General Purpose Power Relay 25ms -25C~40C 1.6kOhm 30mA
PDF
/
Buying Options
Total Price: USD $18.13
Unit Price: USD $18.128
≥1 USD $18.128
≥10 USD $17.22512
≥100 USD $16.318368
≥500 USD $15.411792
≥1000 USD $14.505216
≥3000 USD $13.59864
Inventory: 38
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Silver (Ag)
Mount DIN Rail, Panel, Socket
Mounting Type Socketable
Number of Pins 11
Technical
Operating Temperature -25°C~40°C
Packaging Bulk
Published 2005
Series RR
Feature Lighted Indicator
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Current Rating 10A
Termination Style Plug In, Quick Connect - 0.187 (4.7mm)
Max Voltage Rating (AC) 120V
Max Current Rating 10A
Throw Configuration 3PDT
Max Voltage Rating (DC) 30V
Contact Form 3PDT (3 Form C)
Relay Type General Purpose
Coil Resistance 1.6kOhm
Operate Time 25ms
Coil Voltage 48VDC
Coil Type Non Latching
Switching Voltage 240VAC 30VDC -Max
Coil Current 30mA
Must Operate Voltage 38.4VDC
Must Release Voltage 4.8VDC
Coil Voltage (DC) 48V
Compliance
RoHS Status ROHS3 Compliant
