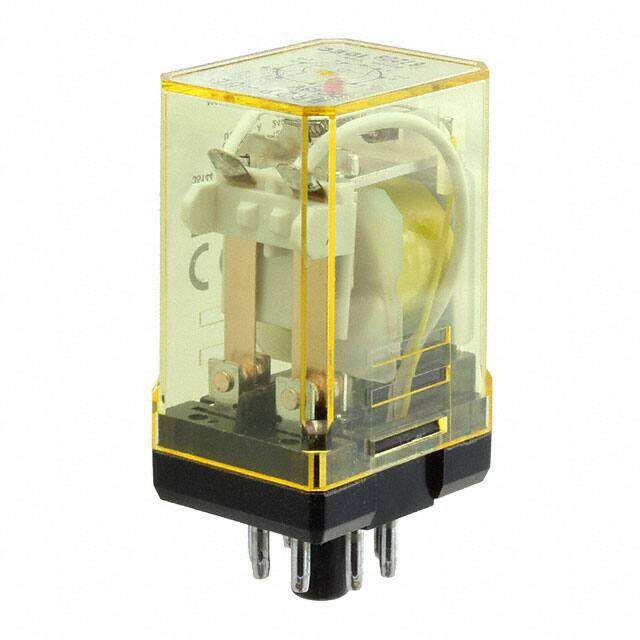

RR2P-UAC6V
RoHS
RoHS compliant
RoHS compliantPackage /
Category Relays / Power Relays, Over 2 Amps
Description
RELAY GEN PURPOSE DPDT 10A 6V
PDF
/
Buying Options
Total Price: USD $18.95
Unit Price: USD $18.9464
≥1 USD $18.9464
≥10 USD $18.00216
≥100 USD $15.159408
Inventory: 153
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Coil Voltage (AC) 6V
Must Release Voltage 1.8VAC
Must Operate Voltage 4.8VAC
Coil Current 420mA
Switching Voltage 240VAC 30VDC -Max
Coil Type Non Latching
Coil Voltage 6VAC
Operate Time 25ms
Coil Resistance 4.9Ohm
Relay Type General Purpose
Contact Form DPDT (2 Form C)
Max Voltage Rating (DC) 30V
Throw Configuration DPDT
Max Current Rating 10A
Max Voltage Rating (AC) 120V
Termination Style Plug In, 8 Pin (Octal)
Current Rating 10A
Termination Circular
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series RR
Published 2005
Packaging Bulk
Operating Temperature -25°C~40°C
Physical
Weight 90g
Number of Pins 8
Mounting Type Socketable
Mount DIN Rail, Panel, Socket
Contact Material Silver (Ag)
Supply Chain
Factory Lead Time 8 Weeks
