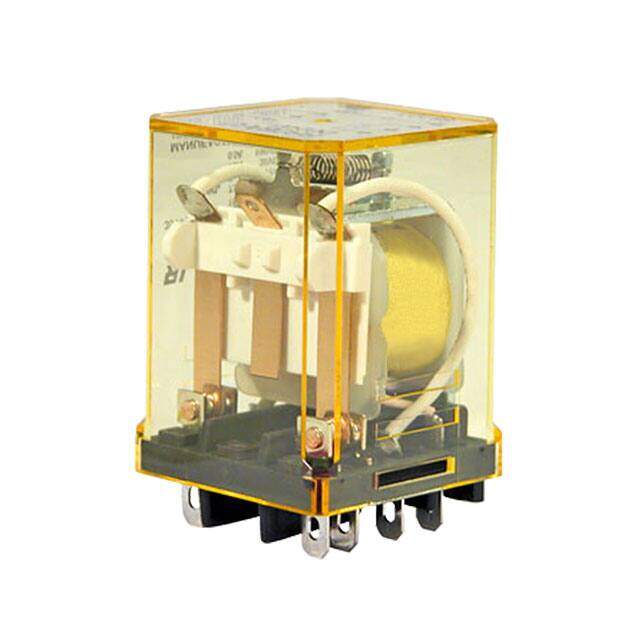

RR2BA-UAC240V image
Favorite
RR2BA-UAC240V image
Favorite

RR2BA-UAC240V

IDEC
RoHS
RoHS RoHS compliant
Package /
Category Relays / Power Relays, Over 2 Amps
Description Active ROHS3Compliant DPDT (2Form C) General Purpose Power Relay 25ms -25C~40C 8.33kOhm 10.5mA
PDF
/
Buying Options
Total Price: USD $29.86
Unit Price: USD $29.855346
≥1 USD $29.855346
≥200 USD $11.913255
≥500 USD $11.514133
≥1000 USD $11.318511
Inventory: 1090
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Technical

Coil Voltage (AC) 240V
Must Release Voltage 72VAC
Must Operate Voltage 192VAC
Coil Current 10.5mA
Switching Voltage 240VAC 30VDC -Max
Coil Type Non Latching
Coil Voltage 240VAC
Operate Time 25ms
Coil Resistance 8.33kOhm
Relay Type General Purpose
Contact Form DPDT (2 Form C)
Max Voltage Rating (DC) 30V
Throw Configuration DPDT
Max Current Rating 10A
Max Voltage Rating (AC) 120V
Termination Style Plug In, Quick Connect - 0.187 (4.7mm)
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series RR
Packaging Bulk
Operating Temperature -25°C~40°C

Physical

Weight 82g
Number of Pins 8
Mounting Type Socketable
Mount Socket
Contact Material Silver (Ag)

Supply Chain

Factory Lead Time 8 Weeks
