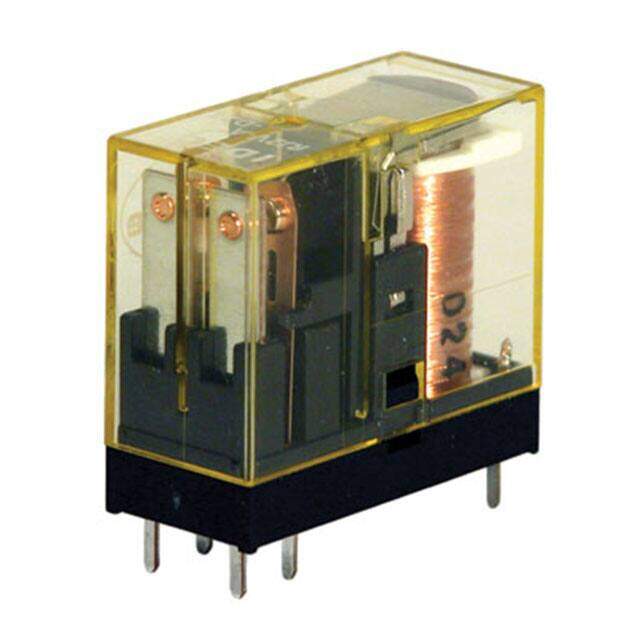

RJ2V-C-D100 image
Favorite
RJ2V-C-D100 image
Favorite

RJ2V-C-D100

IDEC
RoHS
RoHS RoHS compliant
Package /
Category Relays / Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 8A 110V
PDF
/
Buying Options
Total Price: USD $8.17
Unit Price: USD $8.1664
≥1 USD $8.1664
≥10 USD $7.65952
Inventory: 29
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Contact Material Silver Nickel (AgNi)
Mount PCB, Through Hole
Mounting Type Through Hole
Number of Pins 8
Weight 17g

Technical

Operating Temperature -40°C~70°C
Packaging Bulk
Published 2007
Series RJ
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination PC Pin
ECCN Code EAR99
Current Rating 8A
Termination Style PC Pin
Voltage - Rated AC 250V
Max Voltage Rating (AC) 250V
Max Current Rating 8A
Throw Configuration DPDT
Max Voltage Rating (DC) 30V
Contact Form DPDT (2 Form C)
Relay Type General Purpose
Coil Resistance 18.87kOhm
Operate Time 15ms
Coil Voltage 110VDC
Coil Type Non Latching
Switching Voltage 250VAC - Nom
Coil Current 5.3mA
Release Time 10ms
Must Operate Voltage 77VDC
Must Release Voltage 11VDC
Coil Voltage (DC) 110V

Compliance

RoHS Status ROHS3 Compliant
