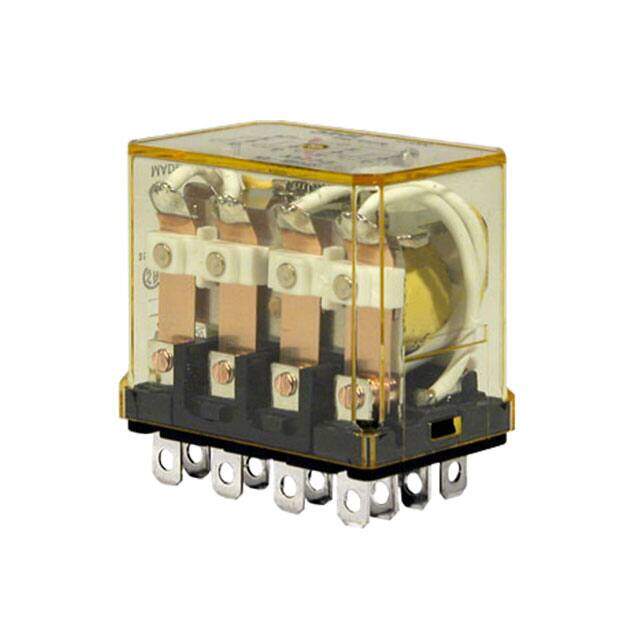

RH4B-UAC24V
RoHS
RoHS compliant
RoHS compliantPackage /
Category Relays / Power Relays, Over 2 Amps
Description
RELAY GEN PURPOSE 4PDT 10A 24V
PDF
/
Buying Options
Total Price: USD $18.5
Unit Price: USD $18.4976
≥1 USD $18.4976
≥10 USD $16.4428
≥100 USD $15.620704
≥500 USD $14.798432
≥1000 USD $13.976336
≥3000 USD $12.743174
Inventory: 96
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Technical
Coil Voltage (AC) 24V
Must Release Voltage 7.2VAC
Must Operate Voltage 19.2VAC
Coil Current 83mA
Switching Voltage 120VAC 28VDC -Max
Coil Type Non Latching
Coil Voltage 24VAC
Operate Time 25ms
Coil Resistance 84.5Ohm
Relay Type General Purpose
Contact Form 4PDT (4 Form C)
Throw Configuration 4PDT
Max Current Rating 10A
Approval Agency CE, CSA, TUV, UL
Voltage - Rated AC 240V
Termination Style Plug In, Quick Connect - 0.187 (4.7mm)
Current Rating 10A
ECCN Code EAR99
Termination Plug
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series RH
Published 2003
Packaging Bulk
Operating Temperature -25°C~70°C
Physical
Mounting Type Socketable
Mount Plug-In, Socket
Contact Material Silver Cadmium Oxide (AgCdO)
Supply Chain
Factory Lead Time 4 Weeks
