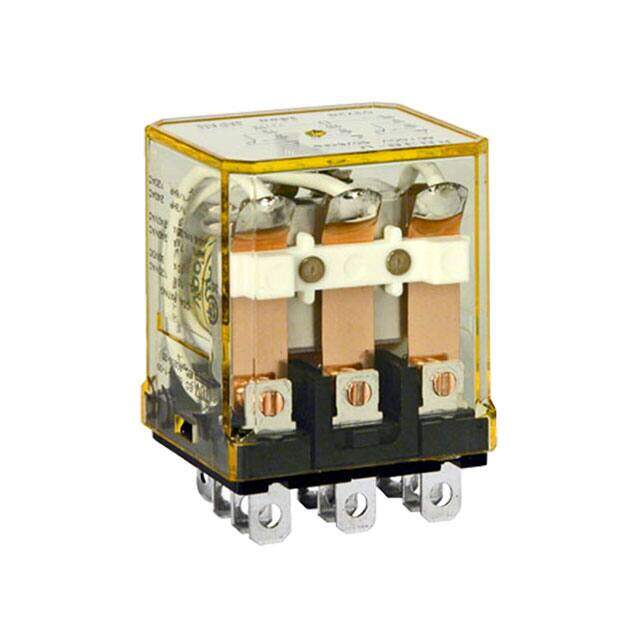

RH3B-UAC24V
RoHS
RoHS compliant
RoHS compliantPackage /
Category Relays / Power Relays, Over 2 Amps
Description
RELAY GEN PURPOSE 3PDT 10A 24V
PDF
/
Buying Options
Total Price: USD $15.07
Unit Price: USD $15.0744
≥1 USD $15.0744
≥10 USD $13.40328
≥100 USD $11.392656
Inventory: 53
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Technical
Coil Voltage (AC) 24V
Must Release Voltage 7.2VAC
Must Operate Voltage 19.2VAC
Coil Current 70mA
Switching Voltage 120VAC 30VDC -Max
Coil Type Non Latching
Coil Voltage 24VAC
Operate Time 25ms
Coil Resistance 103Ohm
Relay Type General Purpose
Contact Form 3PDT (3 Form C)
Max Voltage Rating (DC) 30V
Throw Configuration 3PDT
Max Current Rating 10A
Max Voltage Rating (AC) 110V
Approval Agency CE, CSA, TUV, UL
Voltage - Rated AC 240V
Termination Style Plug In, Quick Connect - 0.187 (4.7mm)
Current Rating 10A
ECCN Code EAR99
Termination Quick Connect
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series RH
Published 2003
Packaging Bulk
Operating Temperature -25°C~70°C
Physical
Weight 50g
Number of Pins 11
Mounting Type Socketable
Mount Socket
Contact Material Silver Cadmium Oxide (AgCdO)
Supply Chain
Factory Lead Time 4 Weeks
