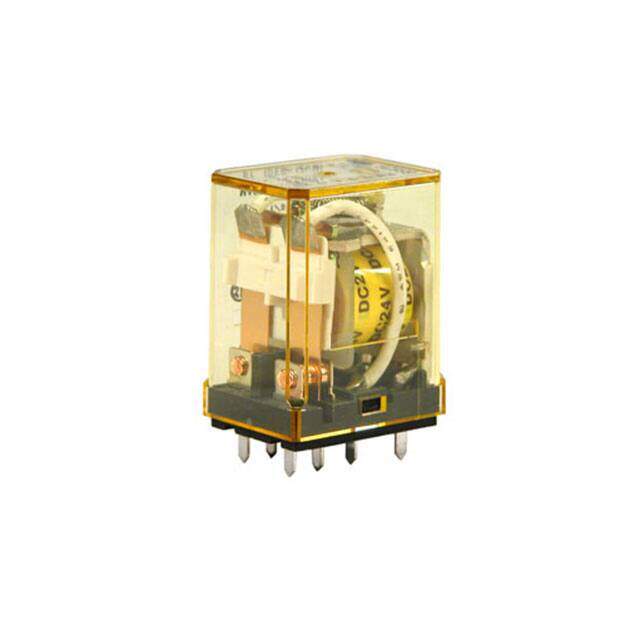

RH2V2-UDC12V
RoHS
RoHS compliant
RoHS compliantPackage /
Category Relays / Power Relays, Over 2 Amps
Description
RELAY GEN PURPOSE DPDT 10A 12V
PDF
/
Buying Options
Total Price: USD $11.16
Unit Price: USD $11.1584
≥1 USD $11.1584
≥10 USD $9.91936
≥100 USD $8.431192
≥500 USD $6.819314
Inventory: 35
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Silver Cadmium Oxide (AgCdO)
Mount Through Hole
Mounting Type Through Hole
Number of Pins 8
Weight 37g
Technical
Operating Temperature -25°C~70°C
Packaging Bulk
Published 2003
Series RH
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination PC Pin
ECCN Code EAR99
Power Rating 900mW
Termination Style PC Pin
Max Voltage Rating (AC) 110V
Max Current Rating 10A
Throw Configuration DPDT
Max Voltage Rating (DC) 30V
Contact Form DPDT (2 Form C)
Relay Type General Purpose
Coil Resistance 40Ohm
Operate Time 20ms
Coil Voltage 12VDC
Coil Type Non Latching
Switching Voltage 240VAC 30VDC -Max
Coil Current 150mA
Must Operate Voltage 9.6VDC
Must Release Voltage 1.2VDC
Coil Voltage (DC) 12V
Dimensions
Height 35.6mm
Width 21mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
