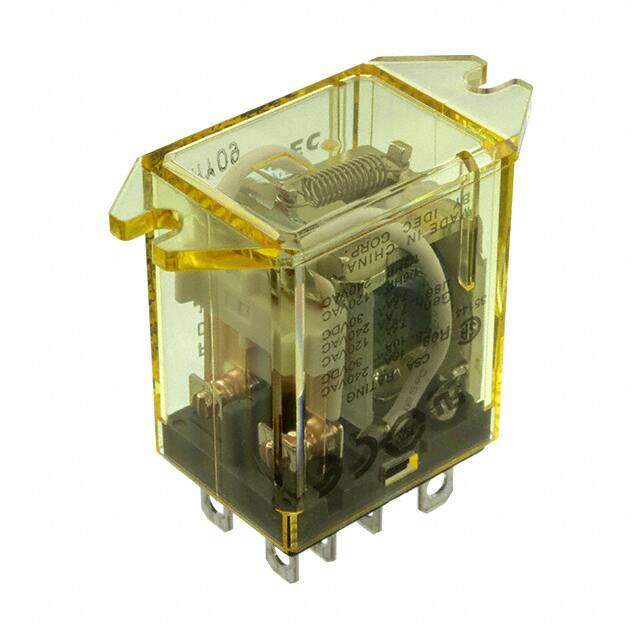

RH2B-UTDC24V
RoHS
RoHS compliant
RoHS compliantPackage /
Category Relays / Power Relays, Over 2 Amps
Description
RELAY GEN PURPOSE DPDT 10A 24V
PDF
/
Buying Options
Total Price: USD $8.4
Unit Price: USD $8.404
≥1 USD $8.404
≥10 USD $7.47296
≥100 USD $7.099136
≥500 USD $6.725312
≥1000 USD $6.578
Inventory: 238
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Silver Cadmium Oxide (AgCdO)
Mount Brackets
Mounting Type Chassis Mount
Number of Pins 8
Weight 37g
Technical
Operating Temperature -25°C~70°C
Packaging Bulk
Published 2005
Series RH
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Quick Connect
ECCN Code EAR99
Current Rating 10A
Reference Standard CE; CSA; CUL; TUV; UL
Termination Style Quick Connect - 0.187 (4.7mm)
Body Length or Diameter 27.5mm
Body Breadth 21 mm
Physical Dimension 27.5mm x 21mm x 35.6mm
Max Voltage Rating (AC) 110V
Max Current Rating 10A
Electrical Life 500000 Cycle(s)
Throw Configuration DPDT
Max Voltage Rating (DC) 30V
Contact Form DPDT (2 Form C)
Relay Type General Purpose
Coil Resistance 650Ohm
Contact (AC) Max Rating R Load 10A@110VAC
Operate Time 20ms
Coil Voltage 24VDC
Coil Type Non Latching
Switching Voltage 240VAC 30VDC -Max
Coil Current 37mA
Release Time 20 ms
Contact (DC) Max Rating R Load 10A@30VDC
Must Operate Voltage 19.2VDC
Coil Power 900mW
Must Release Voltage 2.4VDC
Contact/Output Supply Type AC/DC
Relay Action MOMENTARY
Coil Voltage (DC) 24V
Coil/Input Supply Type DC
Dimensions
Body Height 35.6mm
Compliance
RoHS Status ROHS3 Compliant
