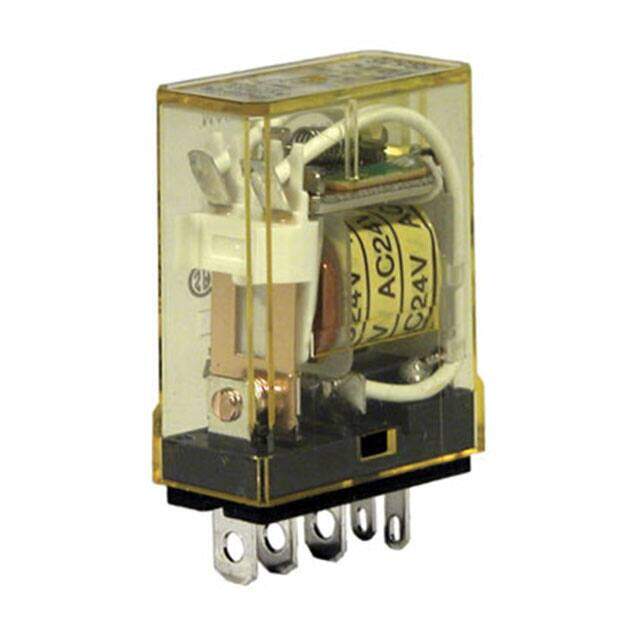

RH1B-ULCDC24V
RoHS
RoHS compliant
RoHS compliantPackage /
Category Relays / Power Relays, Over 2 Amps
Description
RELAY GEN PURPOSE SPDT 10A 24V
PDF
/
Buying Options
Total Price: USD $15.18
Unit Price: USD $15.18
≥1 USD $15.18
≥10 USD $13.49216
≥100 USD $12.817376
≥500 USD $12.142768
≥1000 USD $11.46816
≥3000 USD $10.456301
Inventory: 74
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Silver Cadmium Oxide (AgCdO)
Mount Socket
Mounting Type Socketable
Number of Pins 5
Weight 24g
Technical
Operating Temperature -25°C~70°C
Coil Voltage (DC) 24V
Must Release Voltage 2.4VDC
Must Operate Voltage 19.2VDC
Coil Current 32mA
Switching Voltage 240VAC 30VDC -Max
Coil Type Non Latching
Coil Voltage 24VDC
Operate Time 20ms
Coil Resistance 750Ohm
Relay Type General Purpose
Contact Form SPDT (1 Form C)
Max Voltage Rating (DC) 30V
Throw Configuration SPDT
Max Current Rating 10A
Max Voltage Rating (AC) 110V
Termination Style Plug In, Quick Connect - 0.187 (4.7mm)
ECCN Code EAR99
Termination Blade Terminal
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Lighted Indicator, Test Button
Series RH
Published 2005
Packaging Bulk
Compliance
RoHS Status ROHS3 Compliant
