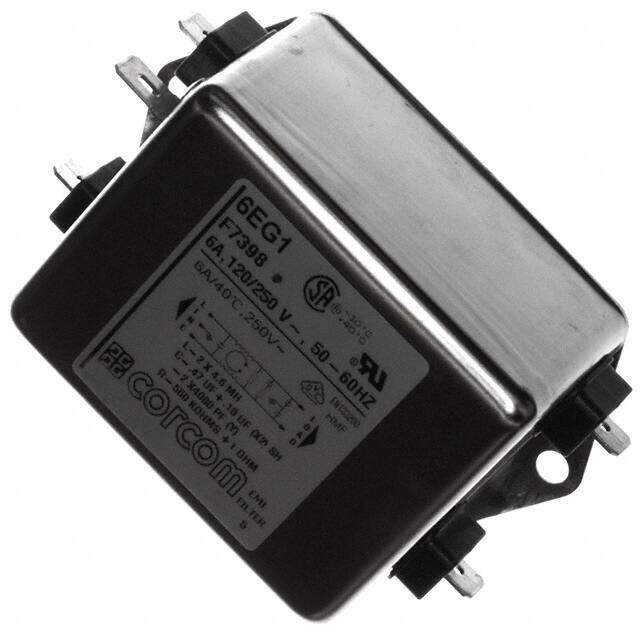

6EG1 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Filters / Power Line Filter Modules
Description LINE FILTER 250VAC 6A CHASS MNT
PDF
/
Buying Options
Total Price: USD $35.81
Unit Price: USD $35.810607
≥1 USD $35.810607
≥10 USD $33.783591
≥100 USD $31.871314
≥500 USD $30.067282
≥1000 USD $28.365356
Inventory: 9061
Minimum: 1
-
+

Technical Details

Technical

Configuration Single Stage
Inductance 3.45mH
ELV Compliant
Leakage Current 300μA
Max Voltage Rating (AC) 250V
Max Current Rating 6A
Current 6A
Filter Type Single Phase
Frequency - Operating 50/60Hz
Fuse No
Approval Agency CSA, UR, VDE
Voltage - Rated AC 250V
Termination Style Quick Connect
Frequency 5.06kHz
Current Rating 6A
Voltage - Rated DC 250V
Capacitance 570nF
Voltage - Rated 250V
Applications General Purpose
Min Operating Temperature -10°C
Max Operating Temperature 40°C
Termination Quick Connect
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series G
Published 2001
Packaging Bulk
Operating Temperature -10°C~40°C

Dimensions

Length 54.6mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free

Physical

Mounting Type Chassis Mount
Mount Chassis Mount, Flanges

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 19 Weeks
