6609031-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Filters / Power Line Filter Modules
Description

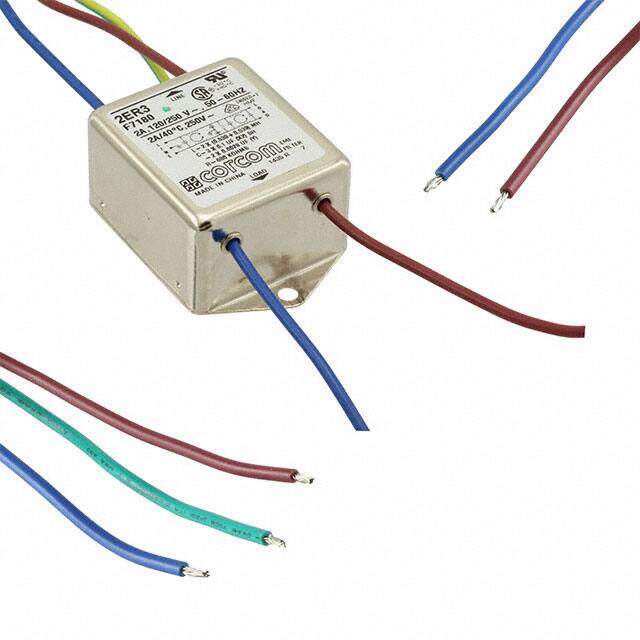

Power Line Filter 50Hz/60Hz 2A 250VAC Wire Lead Flange Mount
PDF
/
Buying Options
Total Price: USD $33.5
Unit Price: USD $33.5016
≥1 USD $33.5016
≥10 USD $32.386446
≥100 USD $27.643
Inventory: 75
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Physical
Mount Chassis Mount, Flanges
Mounting Type Chassis Mount
Technical
Operating Temperature -10°C~40°C
Packaging Bulk
Published 2003
Series R
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Lead Wire, Wire Leads
Max Operating Temperature 40°C
Min Operating Temperature -10°C
Applications General Purpose
Voltage - Rated 250V
Current Rating 2A
Frequency 50Hz
Termination Style Wire Leads
Voltage - Rated AC 250V
Approval Agency CSA, UR, VDE
Configuration Two Stage
Inductance 1.078mH
ELV Compliant
Leakage Current 250μA
Max Voltage Rating (AC) 250V
Max Current Rating 2A
Current 2A
Filter Type Single Phase
Frequency - Operating 50/60Hz
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Alternative Model
