Category Filters / Power Line Filter Modules
Description

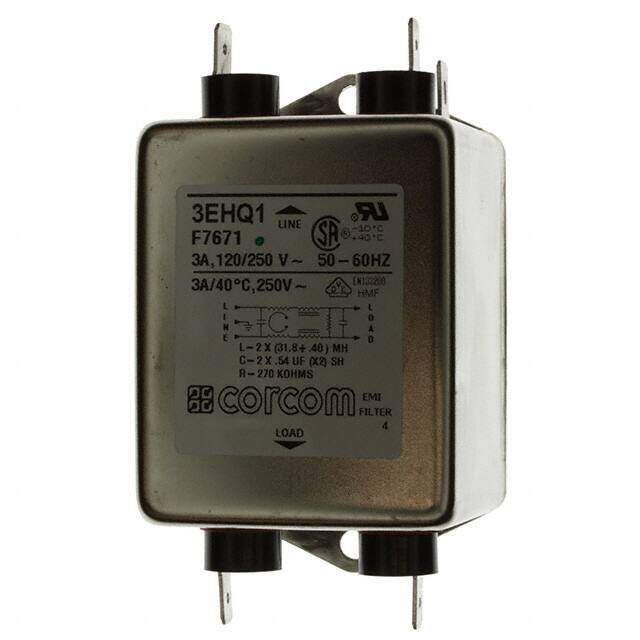

Power Line Filters 3A 1/4 QUICK CONN FLANGE MOUNT
PDF
/
Buying Options
Total Price: USD $45.02
Unit Price: USD $45.0208
≥1 USD $45.0208
≥10 USD $43.52113
≥100 USD $37.147
Inventory: 429
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mounting Type Chassis Mount
Technical
Operating Temperature -10°C~40°C
Published 2003
Series HQ
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Applications General Purpose
Termination Style Quick Connect
Voltage - Rated AC 250V
Approval Agency CSA, UR, VDE
Physical Dimension L84.8XB52.6XH45.2 (mm)/L3.34XB2.07XH1.78 (inch)
Configuration Two Stage
Inductance 32.18mH
Current 3A
Frequency (Max) 0.5MHz
Filter Type Single Phase
Frequency - Operating 50/60Hz
Frequency (Min) 0.01MHz
Insertion Loss@Frequency-Max 44 dB
Insertion Loss@Frequency-Min 19 dB
Dimensions
Height 45.2mm
Length 84.8mm
Width 52.6mm
Compliance
RoHS Status RoHS Compliant
