Category Filters / Power Line Filter Modules
Description

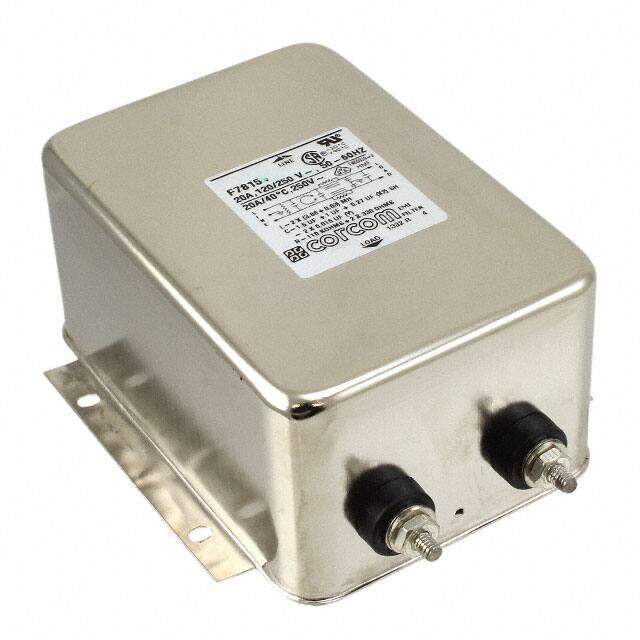

Power Line Filters 20A STUD - STUD FLANGE MOUNT
PDF
/
Buying Options
Total Price: USD $77.79
Unit Price: USD $77.792
≥1 USD $77.792
≥10 USD $75.19893
≥100 USD $72.605975
≥500 USD $70.012967
≥1000 USD $64.185
Inventory: 74
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mounting Type Chassis Mount
Technical
Operating Temperature -10°C~40°C
Published 2011
Series T
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Applications General Purpose
Termination Style Threaded Post (8-32)
Voltage - Rated AC 250V
Approval Agency CSA, UR, VDE
Physical Dimension L151.1XB79.2XH55.4 (mm)/L5.949XB3.118XH2.181 (inch)
Configuration Single Stage
Current 20A
Frequency (Max) 30MHz
Filter Type Single Phase
Frequency - Operating 50/60Hz
High Pot 2250 V
Frequency (Min) 0.01MHz
Insertion Loss@Frequency-Max 30 dB
Insertion Loss@Frequency-Min 3 dB
Dimensions
Height 55.4mm
Length 151.1mm
Width 79.2mm
Compliance
RoHS Status RoHS Compliant
