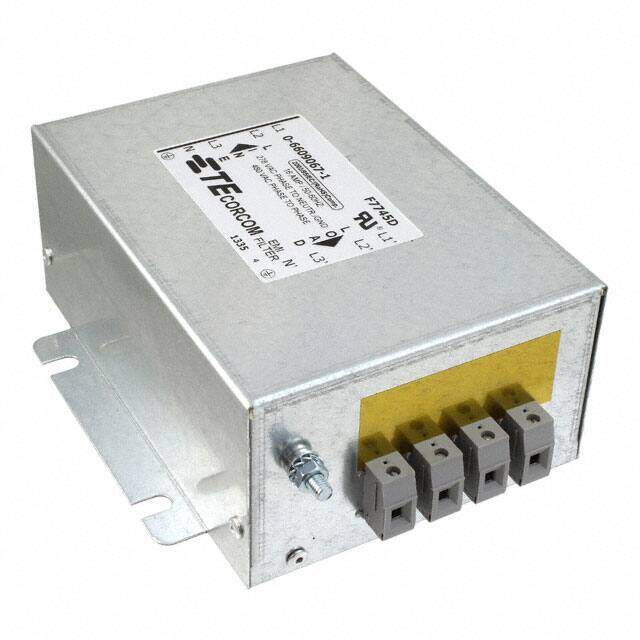

16AYC10B
RoHS
RoHS compliant
RoHS compliantPackage /
Category Filters / Power Line Filter Modules
Description
Power Line Filters 16A PHOENIX CONTACTS FLANGE MOUNT
PDF
/
Buying Options
Total Price: USD $173.11
Unit Price: USD $173.110208
≥1 USD $173.110208
≥10 USD $163.311515
≥100 USD $154.067472
≥500 USD $145.346665
≥1000 USD $137.119501
Inventory: 1269
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 34 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Physical
Mount Chassis, Chassis Mount, Flanges, Panel
Mounting Type Chassis Mount
Technical
Operating Temperature -10°C~40°C
Packaging Bulk
Published 2011
Series AYC
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Terminal Block
Applications General Purpose
Voltage - Rated 480V
Depth 65mm
Current Rating 16A
Frequency 60Hz
Termination Style Terminal Block
Voltage - Rated AC 277V
Approval Agency UR
Configuration Single Stage
ELV Compliant
Leakage Current 700μA
Max Voltage Rating (AC) 480V
Max Current Rating 16A
Wire/Cable Gauge 12 AWG
Filter Type Three Phase (Wye)
Frequency - Operating 50/60Hz
Dimensions
Height 125mm
Length 170mm
Width 125mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
