1609989-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Filters / Power Line Filter Modules
Description

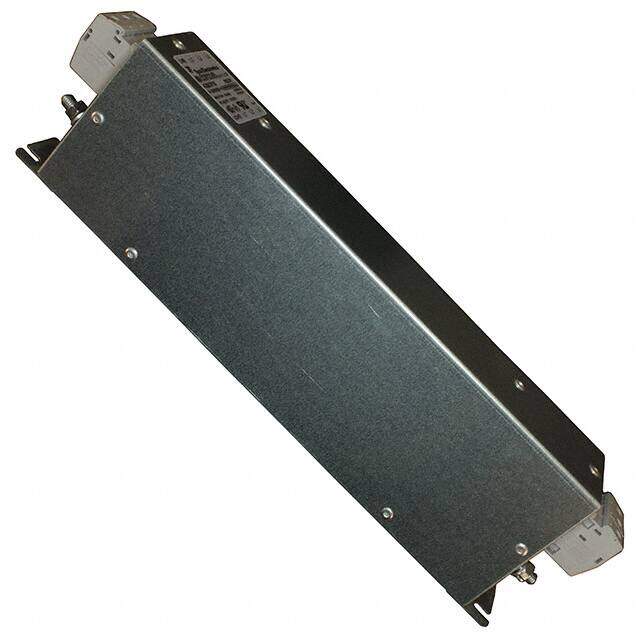

Power Line Filter RFI 50Hz/60Hz 42A 480VAC Terminal Block Flange Mount
PDF
/
Buying Options
Total Price: USD $197.14
Unit Price: USD $197.1376
≥1 USD $197.1376
≥10 USD $190.344
≥100 USD $183.545472
Inventory: 56
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 34 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Mount Chassis Mount, Flanges, Panel
Mounting Type Chassis Mount
Technical
Operating Temperature -10°C~50°C
Packaging Box
Published 2008
Series BCF
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Terminal Block
Applications Inverters, Power Drive Systems
Capacitance 6.7μF
Voltage - Rated DC 480V
Depth 50mm
Reach Compliance Code unknown
Current Rating 42A
Frequency 60Hz
Termination Style Terminal Block
Voltage - Rated AC 277V
Approval Agency UR, VDE
Configuration Two Stage
Inductance 1.14 mH
ELV Compliant
Leakage Current 30mA
Max Voltage Rating (AC) 480V
Max Current Rating 42A
Filter Type Three Phase (Delta)
Frequency - Operating 50/60Hz
Dimensions
Height 85mm
Length 120mm
Compliance
RoHS Status RoHS Compliant
