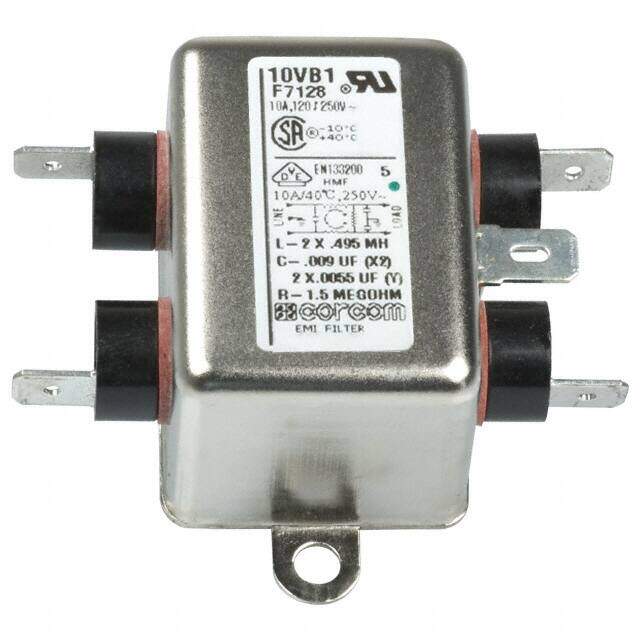

10VB1 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Filters / Power Line Filter Modules
Description LINE FILTER 250VAC 10A CHASS MNT
PDF
/
Buying Options
Total Price: USD $15.6
Unit Price: USD $15.6024
≥1 USD $15.6024
≥10 USD $13.19824
≥100 USD $12.798623
≥500 USD $11.9988
≥1000 USD $10.798902
≥3000 USD $10.398942
Inventory: 212
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown

Dimensions

Width 46.2mm
Length 66.3mm

Technical

Frequency - Operating 50/60Hz
Filter Type Single Phase
Current 10A
Max Current Rating 10A
Max Voltage Rating (AC) 250V
Leakage Current 400μA
ELV Compliant
Inductance 495μH
Configuration Single Stage
Approval Agency CSA, UR, VDE
Voltage - Rated AC 250V
Termination Style Quick Connect
Frequency 5.06kHz
Current Rating 10A
Depth 29.5mm
Voltage - Rated DC 250V
Capacitance 12nF
Voltage - Rated 250V
Applications General Purpose
Min Operating Temperature -10°C
Max Operating Temperature 40°C
Termination Quick Connect
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series B
Published 2006
Packaging Bulk
Operating Temperature -10°C~40°C

Physical

Mounting Type Chassis Mount
Mount Chassis Mount, Flanges, Panel

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 4 Weeks
