RoHS
RoHS compliant
RoHS compliantPackage /
Category Filters / Power Line Filter Modules
Description

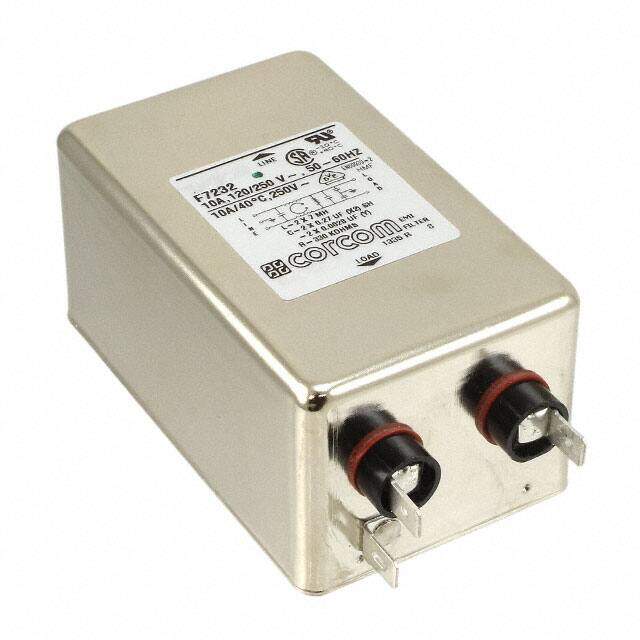

Power Line Filters 10A IEC 1/4 FASTON FLANGE MOUNT
PDF
/
Buying Options
Total Price: USD $41.68
Unit Price: USD $41.6768
≥1 USD $41.6768
≥10 USD $40.2864
≥100 USD $34.386
Inventory: 60
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Technical
Frequency - Operating 50/60Hz
Filter Type Single Phase
Current 10A
Max Current Rating 10A
Max Voltage Rating (AC) 250V
Leakage Current 210μA
ELV Compliant
Inductance 7.13mH
Configuration Single Stage
Approval Agency CSA, UR, VDE
Voltage - Rated AC 250V
Termination Style IEC 320-C14, Quick Connect
Frequency 50Hz
Current Rating 10A
Voltage - Rated 250V
Applications General Purpose
Min Operating Temperature -10°C
Max Operating Temperature 40°C
Termination Quick Connect
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series SK
Published 2009
Packaging Bulk
Operating Temperature -10°C~40°C
Physical
Mounting Type Chassis Mount
Mount Chassis Mount, Through Hole
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 4 Weeks
