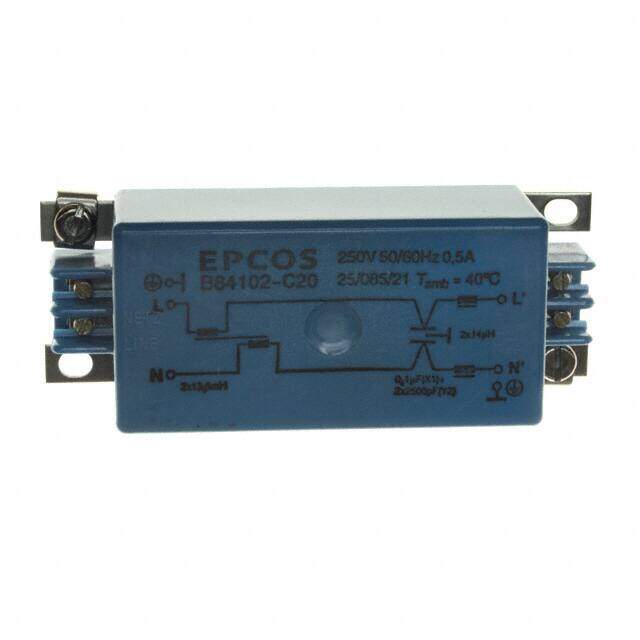

B84102C20
RoHS
RoHS compliant
RoHS compliantPackage /
Category Filters / Power Line Filter Modules
Description
LINE FLTR 250VDC/VAC 500MA CHASS
PDF
/
Inventory: 2790
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 103mm
Height 32mm
Technical
High Pot 2700 V
Frequency - Operating 50/60Hz
Filter Type Single Phase
Current 500mA
Inductance L1 - 13.5mH, L2 - 14μH
Configuration Single Stage
Physical Dimension L103XB38.5XH32 (mm)
Approval Agency VDE
Termination Style Terminal Block
Voltage - Rated DC 250V
Applications General Purpose
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series B84102C
Published 2013
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Mounting Type Chassis Mount
