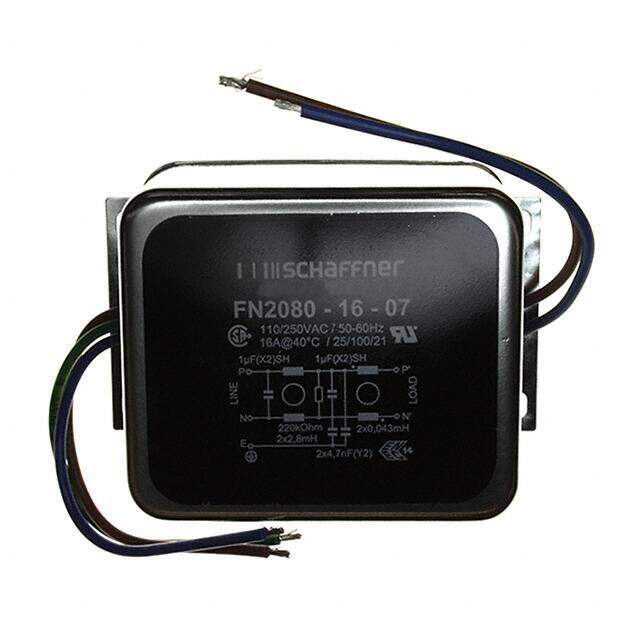

FN2080-16-07
RoHS
RoHS compliant
RoHS compliantPackage /
Category Filters / Power Line Filter Modules
Description
LINE FILTER 110/250VAC 16A CHASS
PDF
/
Buying Options
Total Price: USD $69.49
Unit Price: USD $69.4936
≥1 USD $69.4936
≥10 USD $67.17656
≥100 USD $64.8604
≥500 USD $62.54402
≥1000 USD $60.324
Inventory: 88
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Chassis, Chassis Mount
Mounting Type Chassis Mount
Technical
Operating Temperature -25°C~100°C
Packaging Tray
Published 2009
Series FN 2080
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Wire
Applications General Purpose
Additional Feature INDUCTANCE 2.8 MILLIHENRY
Depth 119mm
Current Rating 16A
Frequency 400Hz
Termination Style Wire Leads
Voltage - Rated AC 110V 250V
Approval Agency CSA, ENEC, UR
Physical Dimension L98.5XB84.5XH57.6 (mm)/L3.878XB3.327XH2.268 (inch)
Configuration Two Stage
Inductance 2.8mH
Leakage Current 734μA
Max Voltage Rating (AC) 250V
Max Current Rating 16A
Filter Type Single Phase
Frequency - Operating DC~400Hz
High Pot 1100 V
Dimensions
Height 57.6mm
Length 85.5mm
Width 84.5mm
Compliance
RoHS Status RoHS Compliant
