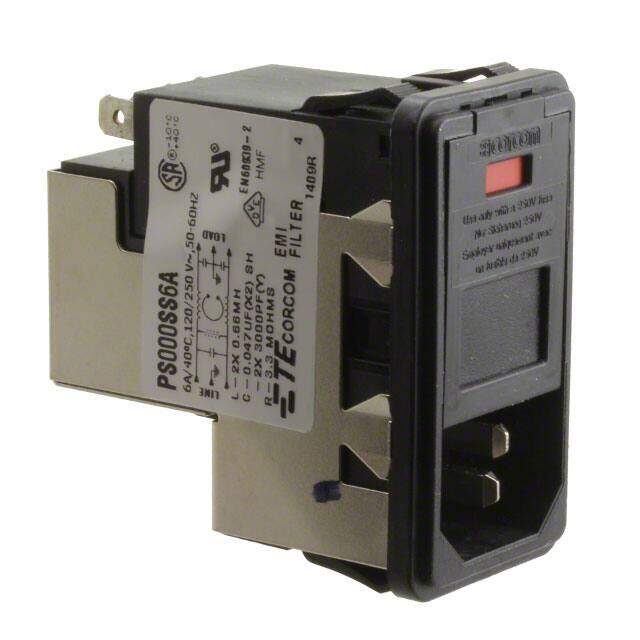

PS000SS6A
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Power Entry Connectors - Inlets, Outlets, Modules
Description
AC Power Entry Modules 6A SINGLE FUSE SNAP IN MOUNT
PDF
/
Buying Options
Total Price: USD $45.04
Unit Price: USD $45.035096
≥1 USD $45.035096
≥192 USD $17.969662
≥496 USD $17.369667
≥992 USD $17.072952
Inventory: 1103
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Panel Thickness 0.031 ~ 0.114 0.79mm ~ 2.90mm
Technical
Fuse Holder, Drawer Fuse Holder
Fuse Yes
Accomodates a Fuse Yes (Fuse Not Included)
Current - IEC 6A
Filter Type Filtered (EMI, RFI) - Commercial
Voltage - IEC 120VAC
Current - UL 6A
Voltage - UL 250VAC
Current 6A
Number of Ports 1
Connector Style IEC 320-C14
Max Current Rating 6A
Max Voltage Rating (AC) 250V
Leakage Current 250μA
ELV Compliant
Panel Cutout Dimensions Variable Size
Number of Contacts 3
Approval Agency CSA, UL, VDE
Voltage - Rated AC 250V
Frequency 30MHz
Current Rating 6A
Orientation Straight
Gender Male
Min Operating Temperature -10°C
Max Operating Temperature 40°C
Number of Positions 3
Connector Type Receptacle, Male Blades - Module
Termination Quick Connect - 0.187 (4.7mm)
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Conversion Clip, Shielded
Series P, Corcom
Published 2009
Packaging Bulk
Physical
Package / Case Module
Mounting Type Panel Mount, Snap-In
Mount Snap in
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Factory Lead Time 25 Weeks
