RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Power Entry Connectors - Inlets, Outlets, Modules
Description

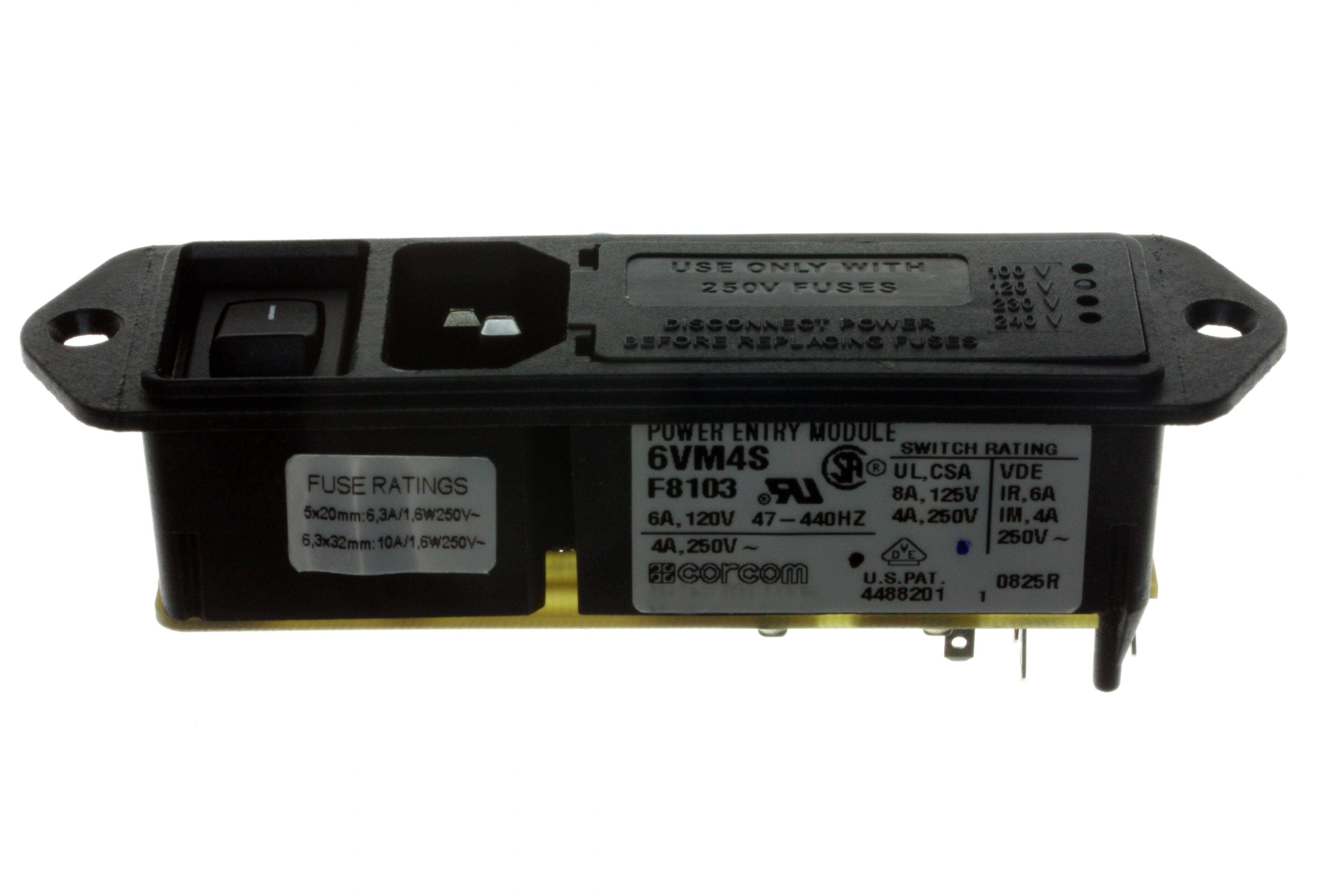

PWR ENT MOD RCPT IEC320-C14 PNL
PDF
/
Buying Options
Total Price: USD $73.01
Unit Price: USD $73.014308
≥1 USD $73.014308
≥192 USD $29.133251
≥496 USD $28.160392
≥992 USD $27.678558
Inventory: 6294
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 25 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Mount Snap in
Mounting Type Panel Mount, Snap-In
Package / Case Module
Technical
Packaging Bulk
Published 2009
Series M, Corcom
Feature Voltage Selector
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Quick Connect - 0.110 (2.8mm)
Connector Type Receptacle, Male Blades - Module
Number of Positions 3
Max Operating Temperature 40°C
Min Operating Temperature -10°C
Gender Male
Orientation Straight
Current Rating 6A
Voltage - Rated AC 100V
Approval Agency CSA, UL, VDE
Number of Contacts 3
Panel Cutout Dimensions Rectangular - 83.06mm x 29.21mm
Voltage 120V
ELV Non-Compliant
Max Voltage Rating (AC) 240V
Max Current Rating 6A
Connector Style IEC 320-C14
Number of Ports 1
Current 6A
Throw Configuration DPST
Voltage - UL 250VAC
Current - UL 4A
Voltage - IEC 120VAC
Filter Type Filtered (EMI, RFI) - Commercial
Current - IEC 6A
Accomodates a Fuse Yes (Fuse Not Included)
Fuse Yes
Fuse Holder, Drawer Fuse Holder
Switch Features Switch On-Off
Dimensions
Panel Thickness 0.060 ~ 0.090 1.52mm ~ 2.29mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
