RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Power Entry Connectors - Inlets, Outlets, Modules
Description

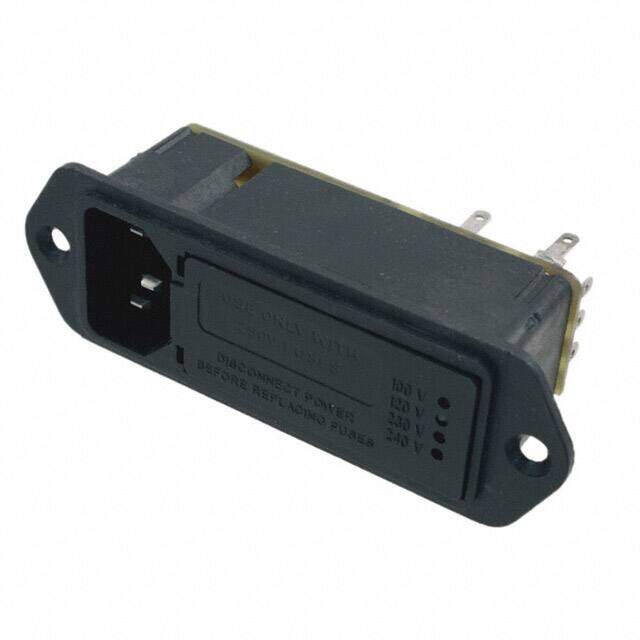

PWR ENT MOD RCPT IEC320-C14 PNL
PDF
/
Buying Options
Total Price: USD $31.33
Unit Price: USD $31.326436
≥1 USD $31.326436
≥10 USD $29.553244
≥100 USD $27.880419
≥500 USD $26.302284
≥1000 USD $24.813478
Inventory: 2449
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Mount Flanges, Panel, Screw
Mounting Type Panel Mount, Flange
Package / Case Module
Technical
Packaging Bulk
Published 2003
Series M, Corcom
Feature Voltage Selector
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Quick Connect - 0.110 (2.8mm)
Connector Type Receptacle, Male Blades - Module
Number of Positions 3
Max Operating Temperature 40°C
Min Operating Temperature -10°C
Gender Male
Voltage - Rated DC 250V
Orientation Straight
Current Rating 6A
Frequency 440Hz
Voltage - Rated AC 120V
Approval Agency CSA, UL, VDE
Number of Contacts 3
Panel Cutout Dimensions Rectangular - 75.44mm x 29.21mm
Voltage 120V
ELV Compliant
Max Voltage Rating (AC) 480mV
Max Current Rating 6A
Connector Style IEC 320-C14
Number of Ports 1
Current 6A
Voltage - UL 250VAC
Current - UL 6A
Voltage - IEC 120VAC
Filter Type Filtered (EMI, RFI) - Commercial
Current - IEC 6A
Accomodates a Fuse Yes (Fuse Not Included)
Fuse Yes
Fuse Holder, Drawer Fuse Holder
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
