RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Power Entry Connectors - Inlets, Outlets, Modules
Description

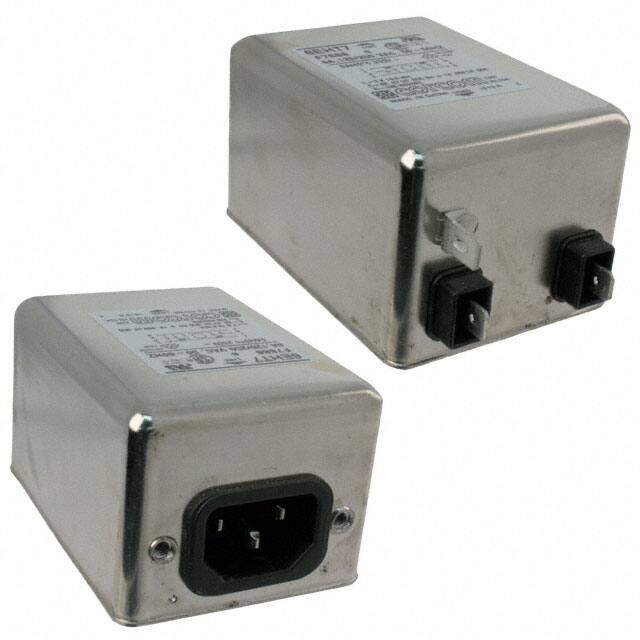

PWR ENT RCPT IEC320-C14 PANEL QC
PDF
/
Buying Options
Total Price: USD $45.48
Unit Price: USD $45.4784
≥1 USD $45.4784
≥10 USD $41.73488
≥100 USD $36.651472
Inventory: 32
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Length 57.2mm
Technical
Accomodates a Fuse No
Current - IEC 6A
Filter Type Filtered (EMI, RFI) - Commercial
Voltage - IEC 120/250VAC
Current - UL 5A
Voltage - UL 250VAC
Current 6A
Connector Style IEC 320-C14
Max Current Rating 6A
Max Voltage Rating (AC) 250V
Leakage Current 2μA
ELV Compliant
Panel Cutout Dimensions Rectangular - 32.89mm x 23.11mm
Approval Agency CSA, UL, VDE
Voltage - Rated AC 250V
Frequency 5.06kHz
Current Rating 6A
Min Operating Temperature -10°C
Max Operating Temperature 40°C
Number of Positions 3
Connector Type Receptacle, Male Blades
Termination Quick Connect - 0.250 (6.3mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series HT, Corcom
Published 2009
Packaging Bulk
Physical
Mounting Type Panel Mount, Flange
Mount Flanges, Panel, Screw
Supply Chain
Factory Lead Time 19 Weeks
