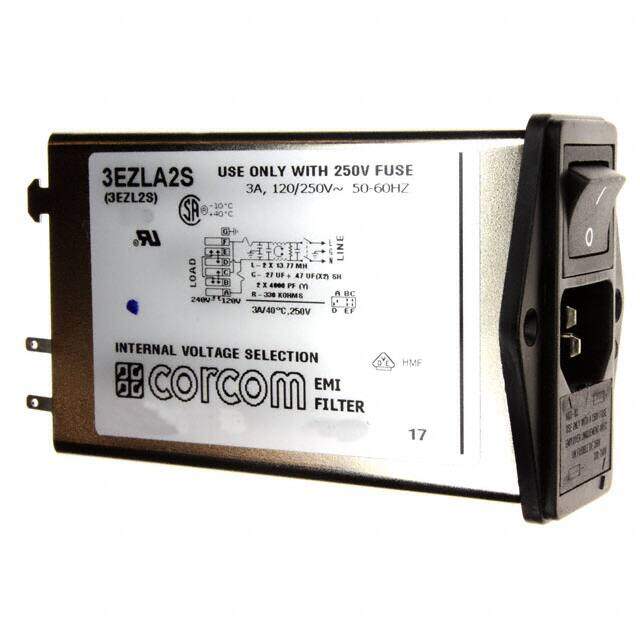

3EZLA2S
RoHS
/
Package Module
Category Connectors, Interconnects / Power Entry Connectors - Inlets, Outlets, Modules
Description
AC Power Entry Modules 3A LOW LEAK PREMIUM PERFORMANCE/FLNG MNT
PDF
/
Inventory: 7787
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Flanges, Panel, Screw
Mounting Type Panel Mount, Flange
Package / Case Module
Technical
Packaging Bulk
Published 2004
Series LA, Corcom
Feature Voltage Selector
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Quick Connect
Connector Type Receptacle, Male Blades - Module
Number of Positions 3
Max Operating Temperature 40°C
Min Operating Temperature -10°C
Gender Male
Additional Feature FAST-ON
Capacitance 740nF
Voltage - Rated DC 250V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Option GENERAL PURPOSE
Total Number of Contacts 3
Orientation Straight
Current Rating 3A
Frequency 30MHz
Voltage - Rated AC 250V
Approval Agency CSA, SEV, UL, VDE
Panel Cutout Dimensions Rectangular - 30.23mm x 61.47mm
ELV Compliant
Max Voltage Rating (AC) 250V
Max Current Rating 3A
Coupling Type SNAP
Connector Style IEC 320-C14
Number of Ports 1
Current 3A
Voltage - UL 250VAC
Current - UL 2A
Voltage - IEC 120VAC
Filter Type Filtered (EMI, RFI) - Commercial
Accomodates a Fuse Yes (Fuse Not Included)
Fuse Yes
Fuse Holder, Drawer Fuse Holder, Twin Fused
Switch Features Switch On-Off
Compliance
REACH SVHC Unknown
Lead Free Lead Free
