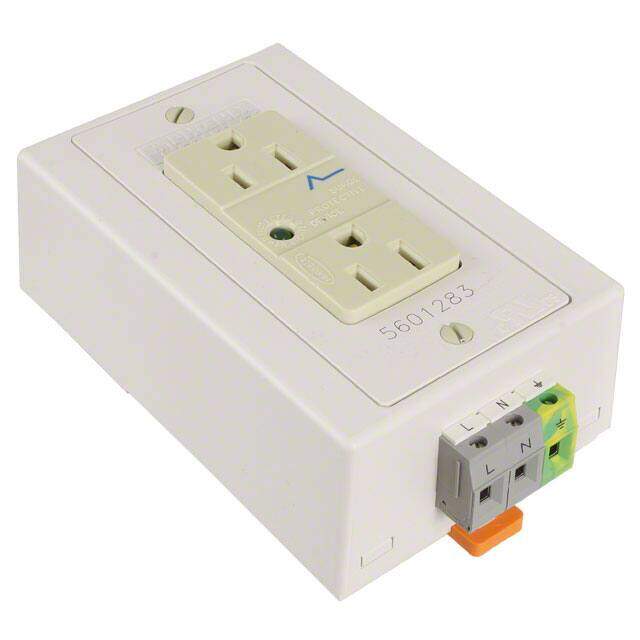

5601283
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Power Entry Connectors - Inlets, Outlets, Modules
Description
AC Power Plugs & Receptacles EM-DUO-120/15/SPD
PDF
/
Buying Options
Total Price: USD $93.79
Unit Price: USD $93.7904
≥1 USD $93.7904
Inventory: 128
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Fuse No
Accomodates a Fuse No
Filter Type Unfiltered - Commercial
Current - UL 15A
Voltage - UL 125VAC
Wire/Cable Gauge 10 AWG
Current 15A
Number of Ports 2
Connector Style NEMA 5-15R
Voltage 120V
Number of Contacts 6
Approval Agency cUL, cULus, UL
Current Rating 15A
Orientation Right Angle
Voltage - Rated 120V
Color Beige, White
Min Operating Temperature -40°C
Max Operating Temperature 70°C
Number of Positions 3 per connection (2)
Connector Type Receptacle, Female Sockets
Termination Screw
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Surge Protection
Published 2010
Packaging Bulk
Physical
Housing Material PVC
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 7 Weeks
