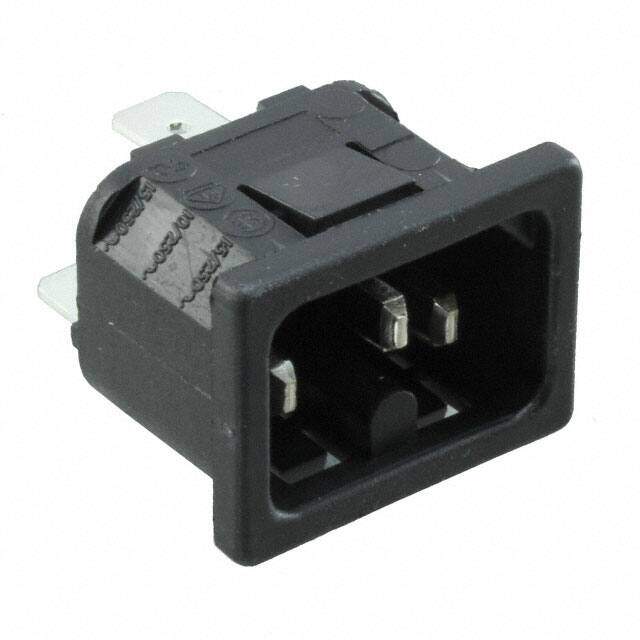

PX0595/20/63
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Power Entry Connectors - Inlets, Outlets, Modules
Description
AC Power Entry Modules SNAP-FIT 2MM PANEL 6.3MM TAB
PDF
/
Buying Options
Total Price: USD $3.47
Unit Price: USD $3.4672
≥1 USD $3.4672
≥10 USD $3.14776
≥100 USD $2.981088
≥500 USD $2.911744
≥1000 USD $2.773056
≥3000 USD $2.426406
Inventory: 265
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Panel Thickness 0.079 2.00mm
Technical
Mains Connector Rating 10/15A, 250/125VAC
Accomodates a Fuse No
Current - IEC 10A
Filter Type Unfiltered - Commercial
Voltage - IEC 250VAC
Current 15A
Connector Style IEC 320-C16
Panel Cutout Dimensions Rectangular - 27.40mm x 19.80mm
Mating Information MULTIPLE MATING PARTS AVAILABLE
Approval Agency CSA, ENEC, UL, VDE
Total Number of Contacts 3
Option GENERAL PURPOSE
IEC Conformance YES
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating TIN
Number of Positions 3
Connector Type Receptacle, Male Blades
Termination Quick Connect - 0.250 (6.3mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series PX
Published 2005
Packaging Bulk
Physical
Shell Material POLYAMIDE
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Material BRASS
Supply Chain
Factory Lead Time 24 Weeks
