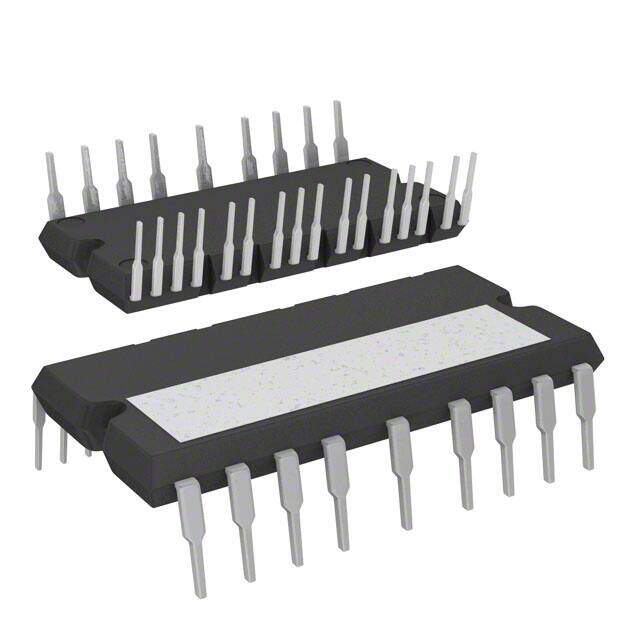

STGIPS30C60-H
RoHS
RoHS compliant
RoHS compliantPackage 25-PowerDIP Module (0.993, 25.23mm)
Category Discrete Semiconductor Products / Power Driver Modules
Description
MOD IPM SLLIMM 30A 600V 25SDIP
PDF
/
Buying Options
Total Price: USD $154.13
Unit Price: USD $154.1337
≥1 USD $154.1337
≥10 USD $148.99515
≥100 USD $133.58235
Inventory: 989
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 32 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 25-PowerDIP Module (0.993, 25.23mm)
Number of Pins 25
Technical
Series SLLIMM?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 25
ECCN Code EAR99
Type IGBT
Max Operating Temperature 150°C
Min Operating Temperature -40°C
HTS Code 8542.39.00.01
Terminal Position DUAL
Number of Functions 1
Supply Voltage 15V
Base Part Number STGIPS30
Voltage - Isolation 2500Vrms
Supply Voltage-Max (Vsup) 18V
Temperature Grade AUTOMOTIVE
Supply Voltage-Min (Vsup) 13.5V
Configuration 3 Phase
Current 30A
Power Dissipation 52W
Collector Emitter Voltage (VCEO) 600V
Collector Emitter Saturation Voltage 2.2V
Dimensions
Height Seated (Max) 7.5mm
Length 44.4mm
Width 22mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Alternative Model
