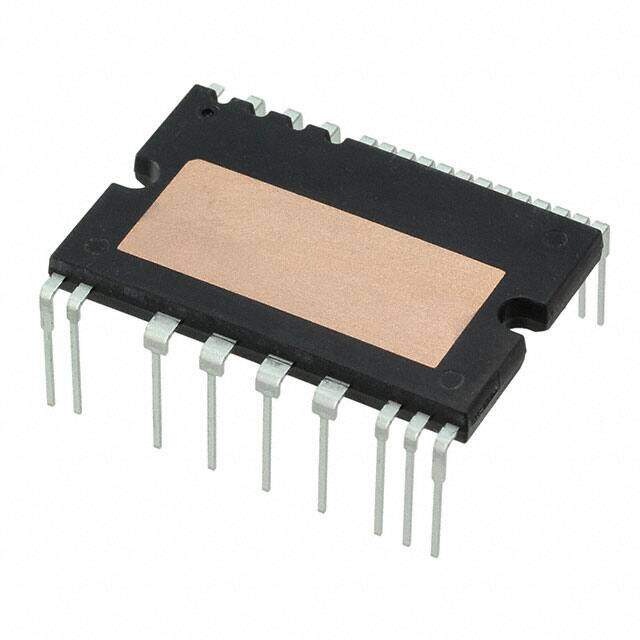

STGIB10CH60TS-L
RoHS
RoHS compliant
RoHS compliantPackage 26-PowerDIP Module (1.134, 28.80mm)
Category Discrete Semiconductor Products / Power Driver Modules
Description
SLLIMM(TM) - 2ND SERIES IPM, 3-P
PDF
/
Buying Options
Total Price: USD $13.16
Unit Price: USD $13.156
≥1 USD $13.156
≥10 USD $11.587567
≥100 USD $10.02151
≥500 USD $9.082014
≥1000 USD $8.330406
Inventory: 49
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 24mm
Length 38mm
Height Seated (Max) 6mm
Technical
Current 15A
Voltage 600V
Configuration 3 Phase Inverter
Temperature Grade AUTOMOTIVE
Voltage - Isolation 1500Vrms
Operating Temperature (Min) -40°C
Operating Temperature (Max) 125°C
JESD-30 Code R-PDMA-T26
Base Part Number STGIB10
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 15V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
HTS Code 8542.39.00.01
Type IGBT
ECCN Code EAR99
Number of Terminations 26
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series SLLIMM?
Physical
Surface Mount NO
Package / Case 26-PowerDIP Module (1.134, 28.80mm)
Mounting Type Through Hole
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 8 months ago)
Factory Lead Time 26 Weeks
Alternative Model
