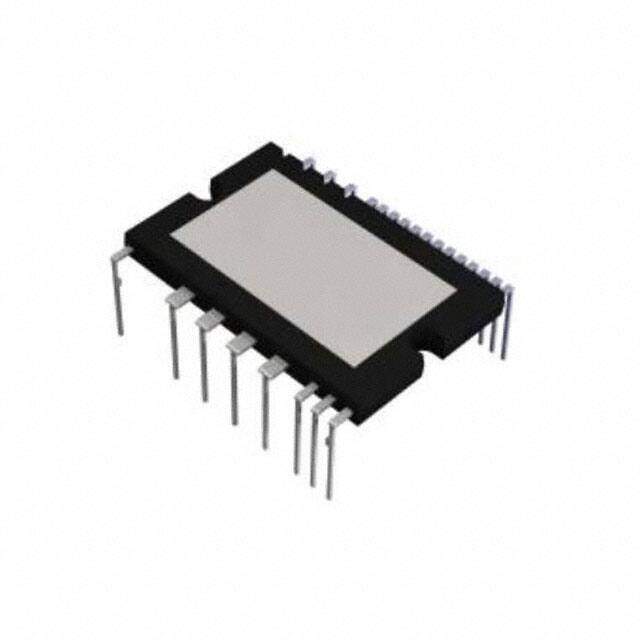

BM63563S-VC
RoHS
RoHS compliant
RoHS compliantPackage 25-PowerDIP Module (1.327, 33.70mm)
Category Discrete Semiconductor Products / Power Driver Modules
Description
25-PowerDIP Module (1.327 33.70mm) Through Hole IGBT 3Phase Inverter Power Driver Module 10A 600V 100C
PDF
/
Buying Options
Total Price: USD $19.17
Unit Price: USD $19.1664
≥1 USD $19.1664
≥10 USD $15.88752
≥100 USD $14.89451
≥500 USD $12.70999
Inventory: 87
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Current 10A
Voltage 600V
Configuration 3 Phase Inverter
Temperature Grade OTHER
Voltage - Isolation 1500Vrms
Operating Temperature (Min) -25°C
Operating Temperature (Max) 100°C
JESD-30 Code R-XZFM-T25
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 15V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position ZIG-ZAG
Technology HYBRID
Additional Feature ALSO REQUIRE 13V TO 18.5V; 0V TO 400 SUPPLY VOLTAGES
Type IGBT
Number of Terminations 25
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Physical
Surface Mount NO
Package / Case 25-PowerDIP Module (1.327, 33.70mm)
Mounting Type Through Hole
Supply Chain
Factory Lead Time 13 Weeks
