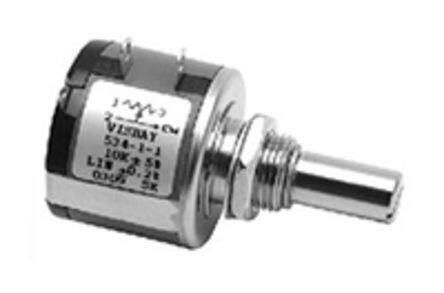

534-1-1-103 image
Favorite
534-1-1-103 image
Favorite

534-1-1-103

Vishay
RoHS
/
Package /
Category / Potentiometers, Variable Resistors
Description Pot;Wirewound;Res 10 Kilohms;Panel;10 Turns;Pwr-Rtg 2 W;Shaft Dia 0.2497 In.
PDF
/
Inventory: 5253
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No

Dimensions

Actuator Length 20.6248mm
Length 39.67mm
Diameter 22.2mm

Technical

Number of Gangs 1
Actuator Diameter 6.35 mm
Linearity 0.25 %
Taper Linear
Number of Turns 10
Power Dissipation-Max 2W
Military Standard Not
Depth 22.23mm
Voltage - Rated DC 141V
Power Rating 2W
Voltage - Rated 141V
Composition Wirewound
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Resistance 10kOhm
Type Potentiometer
Temperature Coefficient 20 ppm/°C
Termination Solder
Tolerance 5%
Published 2012

Physical

Mount Panel
