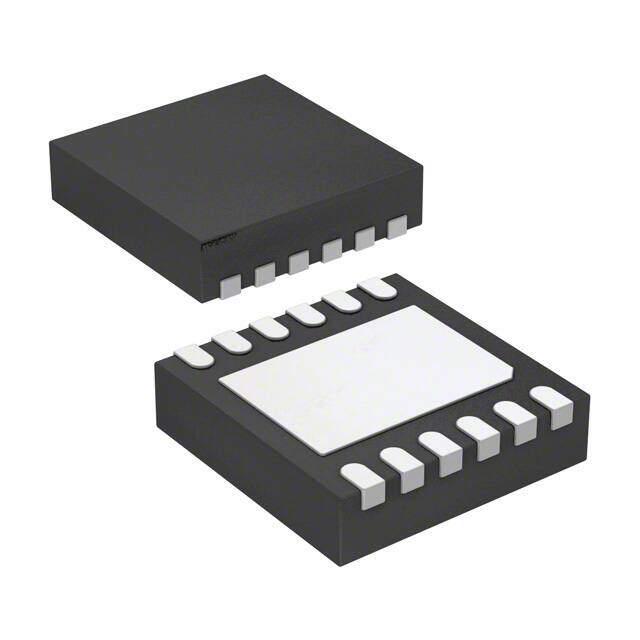

STOD1317BTPUR image
Favorite
STOD1317BTPUR image
Favorite

STOD1317BTPUR

STMicroelectronics
RoHS
RoHS RoHS compliant
Package 12-UFDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Special Purpose
Description IC DC-DC CONV DUAL AMOLED 12DFN
PDF
/
Buying Options
Total Price: USD $4.83
Unit Price: USD $4.83265
≥1 USD $4.83265
≥10 USD $3.9653
≥100 USD $3.8418
≥500 USD $3.71735
≥1000 USD $3.59385
Inventory: 205
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Length 3mm

Technical

Switching Frequency 1.2MHz
Max Input Voltage 4.8V
Control Mode CURRENT-MODE
Topology Boost
Voltage - Output 6V~13V
Output Current 170mA
Voltage - Input 2.6V~4.8V
Analog IC - Other Type SWITCHING REGULATOR
Qualification Status Not Qualified
Number of Outputs 1
Base Part Number STOD13
Terminal Pitch 0.45mm
Terminal Form NO LEAD
Terminal Position DUAL
Subcategory Switching Regulator or Controllers
Applications Converter, AMOLED Display
ECCN Code EAR99
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C

Physical

Number of Pins 12
Package / Case 12-UFDFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
