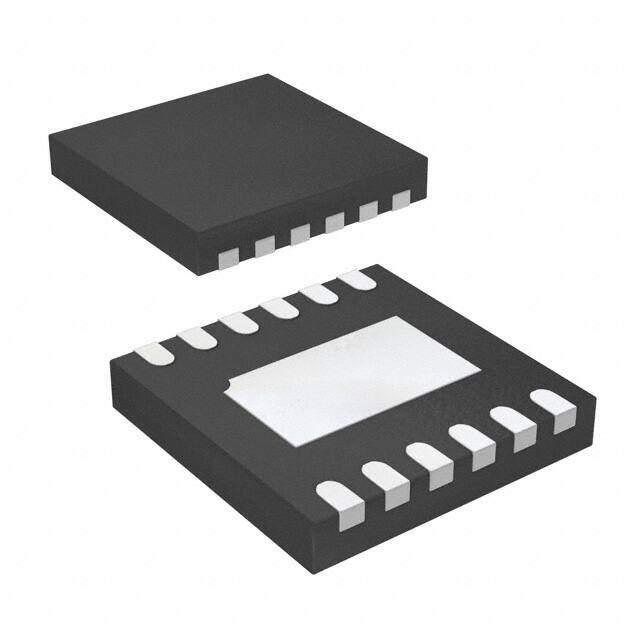

STOD02PUR
RoHS
RoHS compliant
RoHS compliantPackage 12-WFDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Special Purpose
Description
IC CONV DC-DC DUAL AMOLED 12-DFN
PDF
/
Buying Options
Total Price: USD $1.11
Unit Price: USD $1.10675
≥1 USD $1.10675
≥10 USD $0.9082
≥100 USD $0.8797
≥500 USD $0.8512
≥1000 USD $0.8227
Inventory: 72253
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 3mm
Length 3mm
Height Seated (Max) 0.8mm
Technical
Switching Frequency 1.85MHz
Control Technique PULSE WIDTH MODULATION
Max Input Voltage 4.5V
Control Mode VOLTAGE-MODE
Min Input Voltage 2.5V
Topology Boost
Voltage - Output 4.6V -2.3V~-5.9V
Output Current 150mA
Voltage - Input 2.5V~4.5V
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 3.7V
Max Output Current 150mA
Output Type Fixed
Output Voltage 4.6V
Efficiency 85 %
Number of Outputs 2
Pin Count 12
Base Part Number STOD02
Terminal Pitch 0.45mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position DUAL
Subcategory Switching Regulator or Controllers
Applications Converter, AMOLED Display
Terminal Finish Matte Tin (Sn) - annealed
ECCN Code EAR99
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 12
Package / Case 12-WFDFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
