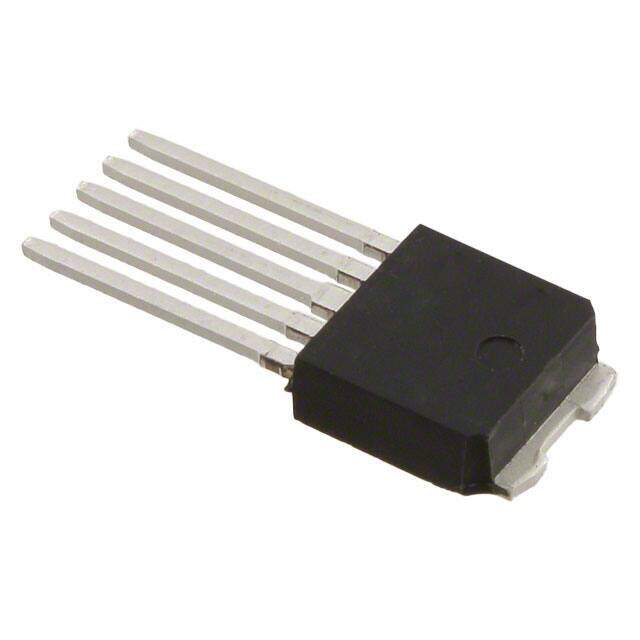

LNBP8LIT
RoHS
RoHS compliant
RoHS compliantPackage IPPAK-5
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Special Purpose
Description
IC LNB SUPPLY & CTRL VREG IPPAK
PDF
/
Buying Options
Total Price: USD $7.81
Unit Price: USD $7.808784
≥1 USD $7.808784
≥10 USD $7.366781
≥100 USD $6.949798
≥500 USD $6.556418
≥1000 USD $6.185298
Inventory: 1478
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 2.3mm
Height Seated (Max) 7.4mm
Technical
Switching Frequency-Max 24kHz
Supply Current-Max (Isup) 6.3mA
Max Input Voltage 25V
Min Input Voltage 15V
Voltage - Output 13.25V 18V
Output Current 500mA
Nominal Supply Current 3.7mA
Voltage - Input 15V~25V
Analog IC - Other Type SWITCHING REGULATOR
Polarity Positive
Input Voltage-Nom 16V
Max Output Current 500mA
Output Type Fixed
Output Voltage 19V
Qualification Status Not Qualified
Number of Outputs 1
Pin Count 5
Base Part Number LNBP8
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology BIPOLAR
Subcategory Power Management Circuits
Applications Converter, Analog and Digital Satellite STB Receivers/SatTV
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Packaging Tube
Operating Temperature 0°C~85°C
Physical
Number of Pins 5
Package / Case IPPAK-5
Mounting Type Surface Mount
Mount Surface Mount, Through Hole
