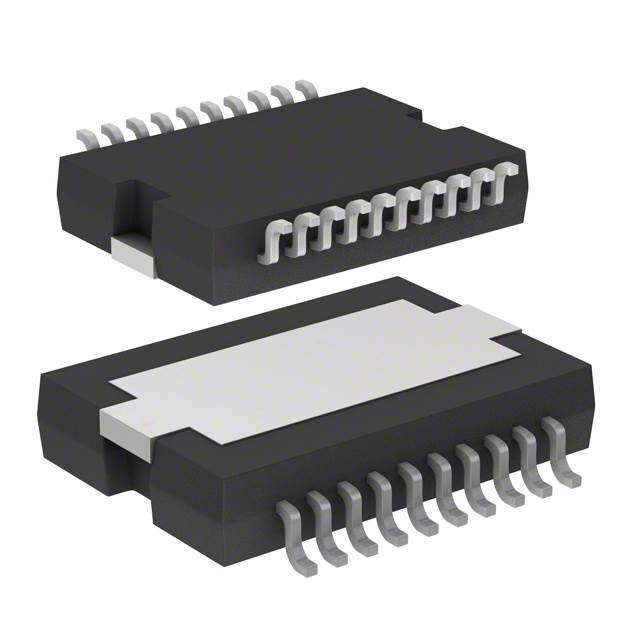

L5956PD
RoHS
RoHS compliant
RoHS compliantPackage 20-PowerSOIC (0.433, 11.00mm Width)
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Special Purpose
Description
IC REG CONV CAR AUD 4OUT PWRSO20
PDF
/
Buying Options
Total Price: USD $9.68
Unit Price: USD $9.67765
≥1 USD $9.67765
≥10 USD $7.94105
≥100 USD $7.69215
≥500 USD $7.4442
≥1000 USD $7.19625
Inventory: 29
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 11mm
Length 15.9mm
Height Seated (Max) 3.5mm
Technical
Dropout Voltage2-Max 1.5V
Output Current2-Max 0.3A
Output Voltage 2 5V
Dropout Voltage1-Max 0.6V
Output Current1-Max 0.5A
Regulator Type FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Output Voltage 1 8.5V
Voltage - Output 3.3V 5V 8.5V
Voltage - Input 6V~18V
Operating Supply Voltage 30V
Number of Outputs 4
Pin Count 20
Base Part Number L5956
Terminal Pitch 1.27mm
Number of Functions 1
Terminal Form GULL WING
Terminal Position DUAL
Applications Converter, Car Audio System
ECCN Code EAR99
Number of Terminations 20
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Number of Pins 20
Package / Case 20-PowerSOIC (0.433, 11.00mm Width)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 16 Weeks
