ADP3192JCPZ-RL
RoHS
RoHS compliant

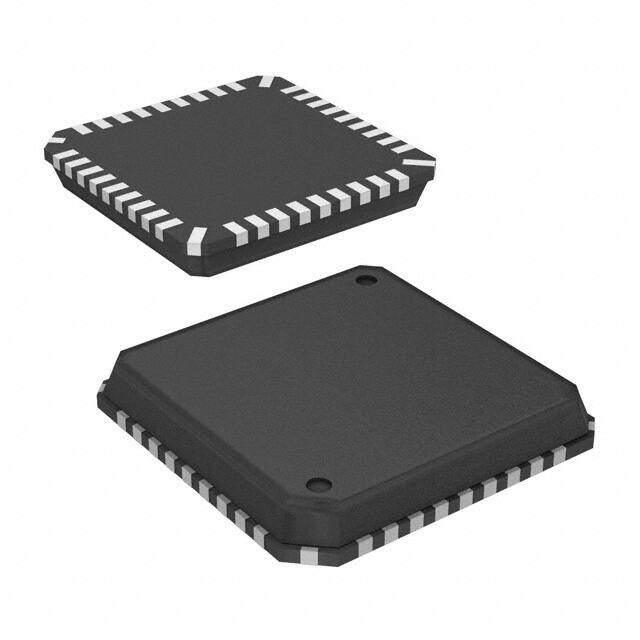

RoHS compliantPackage 40-VFQFN Exposed Pad, CSP
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Special Purpose
Description
SWITCHING CONTROLLER
PDF
/
Buying Options
Total Price: USD $6.41
Unit Price: USD $6.4125
≥1 USD $6.4125
≥10 USD $5.2611
≥100 USD $5.09675
≥500 USD $4.9324
≥1000 USD $4.76805
Inventory: 2613
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 40-VFQFN Exposed Pad, CSP
Surface Mount YES
Technical
Operating Temperature 0°C~85°C
Packaging Tape & Reel (TR)
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 40
Terminal Finish MATTE TIN
Applications Controller, Intel VR10, VR11
Additional Feature CAN ALSO BE CONFIGURED IN CURRENT MODE
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.5mm
Reach Compliance Code unknown
Time@Peak Reflow Temperature-Max (s) 40
Pin Count 40
Number of Outputs 4
Input Voltage-Nom 5V
Analog IC - Other Type SWITCHING CONTROLLER
Voltage - Input 12V
Voltage - Output 0.5V~1.6V
Control Mode VOLTAGE-MODE
Control Technique PULSE WIDTH MODULATION
Switcher Configuration PHASE-SHIFT
Dimensions
Height Seated (Max) 1mm
Length 6mm
Width 6mm
Compliance
RoHS Status ROHS3 Compliant
