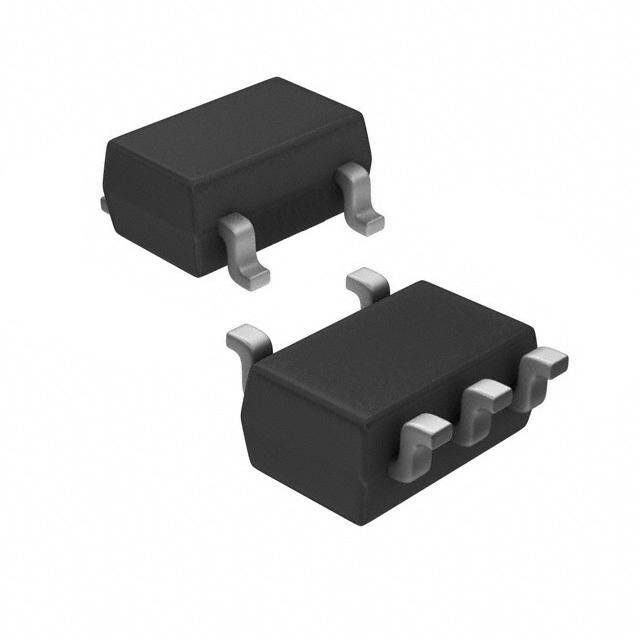

TCR2EF41,LM image
Favorite
TCR2EF41,LM image
Favorite

TCR2EF41,LM

Toshiba
RoHS
/
Package /
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description LDO Voltage Regulators CMOS Point Reg 200mA 6Vin 4.1Vout
PDF
/
Inventory: 6751
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Technical

Dropout Voltage 150mV
Max Input Voltage 5.5V
Current - Input Bias 60μA
Min Input Voltage 1.5V
Number of Regulators 1
Voltage - Output 4.1V
Quiescent Current 60μA
Current - Output 200mA
Operating Supply Current 35μA
Power Dissipation-Max 580mW
Output Type Fixed
Number of Outputs 1
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Published 2015

Physical

Number of Pins 5
Mount Surface Mount
