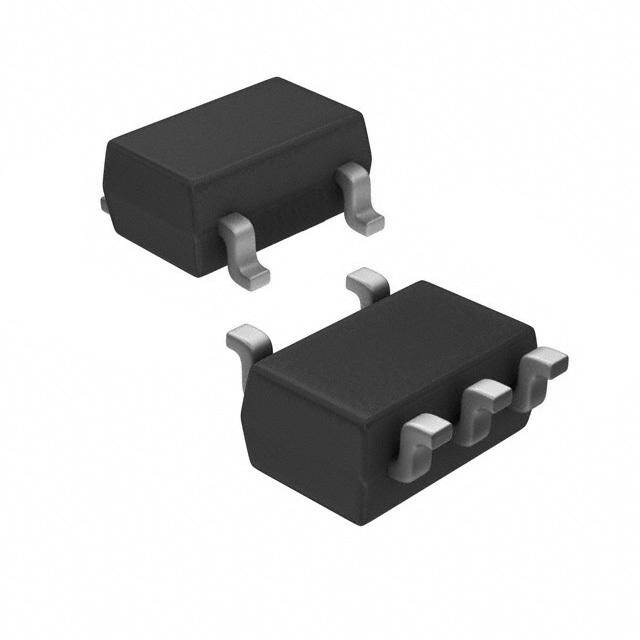

TCR2EF15,LM
RoHS
/
Package /
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
LDO Voltage Regulators CMOS Point Reg 200mA 6Vin 1.5Vout
PDF
/
Inventory: 1897
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Number of Pins 5
Technical
Published 2015
Number of Terminations 5
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Technology CMOS
Terminal Position DUAL
Terminal Form GULL WING
Number of Functions 1
Number of Outputs 1
Output Type Fixed
Power Dissipation-Max 580mW
Operating Supply Current 35μA
Current - Output 200mA
Quiescent Current 60μA
Voltage - Output 1.5V
Output Voltage 1 1.5V
Min Input Voltage 1.5V
Current - Input Bias 60μA
Max Input Voltage 5.5V
Dropout Voltage 290mV
Dimensions
Length 2.9mm
Compliance
RoHS Status RoHS Compliant
