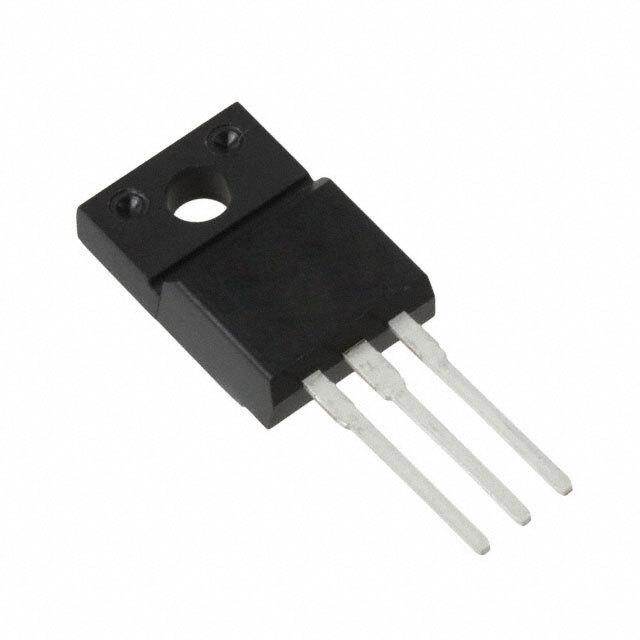

TA58L05S(Q) image
Favorite
TA58L05S(Q) image
Favorite

TA58L05S(Q)

Toshiba
RoHS
/
Package TO-220-3
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description Discontinued Lead Free Positive 2007 voltage regulator linear 105C 2W 250mA 2.54mm
PDF
/
Inventory: 4634
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No

Technical

Load Regulation-Max(%) 0.03%
Output Voltage Accuracy 3 %
Voltage Tolerance-Max 4%
Dropout Voltage1-Nom 0.22V
Dropout Voltage 220mV
Max Input Voltage 29V
Current - Input Bias 25mA
Output Voltage 1 5V
Voltage - Output 5V
Accuracy 3 %
Quiescent Current 50mA
Current - Output 250mA
Power Dissipation 2W
Power Dissipation-Max 2W
Polarity Positive
Max Output Current 250mA
Output Type Fixed
Number of Outputs 1
JESD-30 Code R-PSFM-T3
Pin Count 3
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position SINGLE
Technology BIPOLAR
Subcategory Other Regulators
Min Operating Temperature -40°C
Max Operating Temperature 105°C
ECCN Code EAR99
Number of Terminations 3
Part Status Discontinued
Published 2007

Physical

Package / Case TO-220-3
Mount Through Hole
